Product Details:
|
Type:: | Ductile Iron Y Strainer | Port Size:: | DN150 |
---|---|---|---|
Product Name:: | Y Filter | Bonnet Material:: | Ductile Iron ,Ggg50 |
Temperature Of Media: | Low Temperature, Normal Temperature | Pressure:: | PN10/16 |
Highlight: | DN150 Cast Iron Y Filter,Pn10 Ductile Cast Iron Y Filter,Ggg50 Stainless Steel Y Strainer |

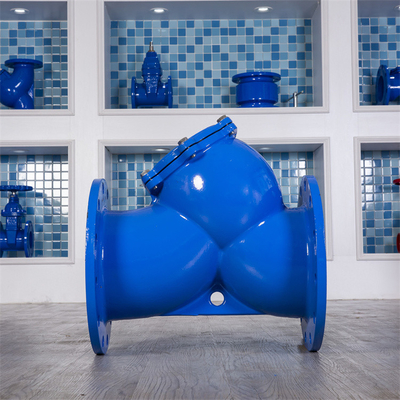

Y strainers, also known as wye strainers, are shaped like a "Y" and install inline to prevent solids, pipe scale, rust, and debris from mixing into liquid, gas, or steam in a flowline. Y strainers use perforated or wire mesh straining screens and install vertically or horizontally to protect pumps, meters, control valves, steam traps, regulators, and other process equipment. These strainers are available in a variety of sizes and materials.
Carefully clean all pipe threaded surfaces before installing the filter, using pipe sealant or Teflon tape (teflon) in moderation. End threads are left untreated to avoid allowing sealant or Teflon tape to enter the piping system. Filters can be installed horizontally or vertically downwards. When installing 1-1/4" (DN32) or larger socket weld filters or all D series filters, it should be noted that the gaskets on these filters are non-metallic and are easily damaged by overheating. Shorten the welding time and cool the filter after welding. If preheating is required before welding or continued heating after welding (D series filter), it is recommended to remove the gasket before heating.
Material :
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
