Product Details:
|

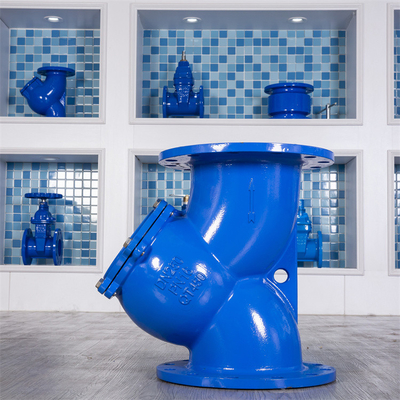

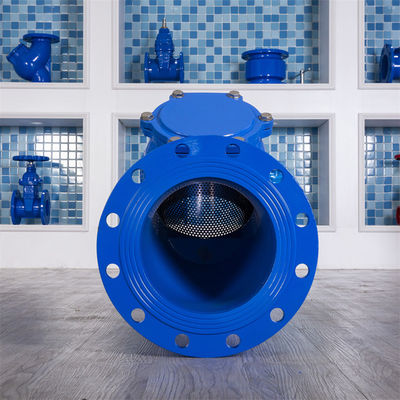

Type:: | Ductile Iron Y Strainer | Port Size:: | DN200 |
---|---|---|---|
Material:: | Wate,tap Water,oil,food,STEAM | Body Material:: | Ggg40 |
Temperature Of Media: | Low Temperature, Normal Temperature | Pressure:: | PN16 |
Highlight: | Ggg40 flange type strainer,Wastewater flange type strainer,DN200 Stainless Steel threaded y strainer |
The Y-type filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it needs to be cleaned, it is only necessary to take out the detachable filter cartridge and reload it after processing. Therefore, it is extremely convenient to use and maintain. Y-type filter, also known as decontamination device and filter valve, is an indispensable device in the pipeline system for conveying medium. Particles, etc. are filtered to protect the fittings on the equipment pipeline from wear and blockage, which can protect the normal General principles of filter selection:
1. Import and export diameter:
In principle, the inlet and outlet diameter of the filter should not be smaller than the inlet diameter of the matching pump, which is generally the same as the diameter of the inlet pipeline.
2. Nominal pressure:
Determine the pressure rating of the filter according to the highest possible pressure in the filter line.
3. Selection of the number of holes:
The main consideration is the particle size of impurities to be intercepted, which is determined according to the process requirements of the medium process. For the particle size that can be intercepted by wire meshes of various specifications, please refer to the table "Filter Specifications".
4. Filter material:
The material of the filter is generally the same as that of the connected process pipeline. For different service conditions, the filter of cast iron, carbon steel, low alloy steel or stainless steel can be considered.
Material :
Body | Grey Cast Iron /Ductile Iron |
Bonnet | Grey Cast Iron /Ductile Iron |
Plug | Carbon Steel |
Screen Fliter | Stainless Steel |
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |
Steam or gas pipeline: the screen is horizontal;
Liquid pipeline: the filter screen is installed downward;
Vertical installation: Point to [1] according to filter installation.
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
