Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

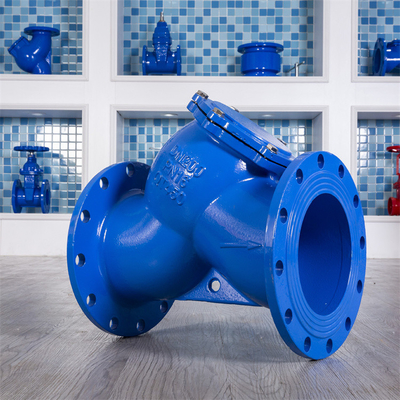

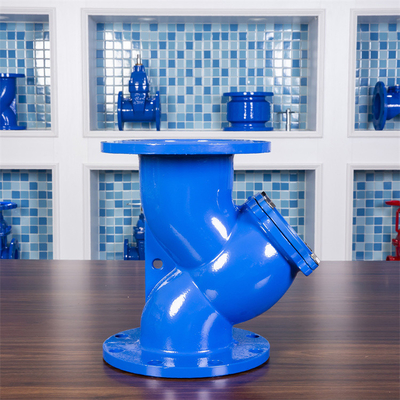

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard
Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard

Large Image :  Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard

Description
Type:: Ductile Iron Y Strainer Port Size:: DN300
Material:: Wate,tap Water,oil,food,STEAM Body Material:: Ggg50
Temperature Of Media: Low Temperature, Normal Temperature Pressure:: PN16
Highlight:

Ggg50 Cast Iron Y Filter

,

PN16 Cast Iron Y Filter

,

German Standard y strainer flange type

Ggg50 PN16 German Standard Ductile Cast Iron Y Type Water Filter Y Flange Filter Y Strainer



product description

Y-type filter is an indispensable filter device in the pipeline system for conveying medium. Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium. , to protect the normal use of valves and equipment. The Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge. The suitable medium of Y-type filter can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh. The basket filter is mainly composed of a connecting pipe, a main pipe, a filter blue, a flange, a flange cover and a fastener. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter blue and is discharged from the filter outlet.

General principles of filter selection:
1. Import and export diameter:
In principle, the inlet and outlet diameter of the filter should not be smaller than the inlet diameter of the matching pump, which is generally the same as the diameter of the inlet pipeline.
2. Nominal pressure:
Determine the pressure rating of the filter according to the highest possible pressure in the filter line.
3. Selection of the number of holes:
The main consideration is the particle size of impurities to be intercepted, which is determined according to the process requirements of the medium process. For the particle size that can be intercepted by wire meshes of various specifications, please refer to the table "Filter Specifications".
4. Filter material:
The material of the filter is generally the same as that of the connected process pipeline. For different service conditions, the filter of cast iron, carbon steel, low alloy steel or stainless steel can be considered.

Material :

Body Grey Cast Iron /Ductile Iron
Bonnet Grey Cast Iron /Ductile Iron
Plug Carbon Steel
Screen Fliter Stainless Steel
y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307





y-type filter(reduced diameter) flange thickness flange outer circle structure length waterline height waterline diameter Height screen diameter filter length filter aperture center distance of filter weight length
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 0Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 1Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 2

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 3Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 5

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 6

Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 7





Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 8



Ggg50 Ductile Cast Iron Y Filter Strainer Flange Type PN16 German Standard 9





























































































































































































































































































































Q1. Can I have a sample order for valve? A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order? A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive? A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5: Are you products standard? A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items? A: Absolutely! We have big interest.
