Product Details:
|

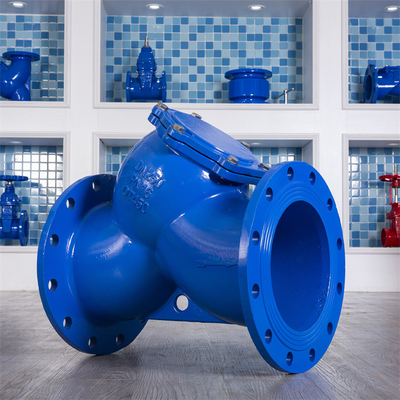

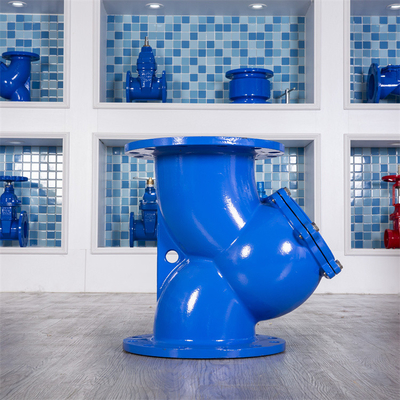

Type:: | Ductile Iron Y Strainer | Port Size:: | DN250 |
---|---|---|---|
Material:: | Wate,tap Water,oil,food,STEAM | Body Material:: | Ggg50 |
Temperature Of Media: | Low Temperature, Normal Temperature | Pressure:: | PN10/16 |
Highlight: | Dn250 strainer y type flanged,Ggg50 strainer y type flanged,Ss304 Filter Y Type Strainer Valve |
Y-type filter is an indispensable filter device in the pipeline system for conveying medium. Y-type filter is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to remove impurities in the medium. , to protect the normal use of valves and equipment. The Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge. The suitable medium of Y-type filter can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh. The basket filter is mainly composed of a connecting pipe, a main pipe, a filter blue, a flange, a flange cover and a fastener. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter blue and is discharged from the filter outlet.
1. Suitable materials:
a. Weak corrosive materials in chemical and petrochemical production, such as: water, ammonia, oil, hydrocarbons, etc.;
b. Corrosive materials in chemical production, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, acetic acid, ester acid, etc.;
c. Low temperature materials in refrigeration, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants;
d. Materials with hygienic requirements in the production of light industrial food and pharmaceuticals, such as beer, beverages, dairy products, grain, pulp and medical supplies, etc.
2. Filtration accuracy: 10-480 mesh (generally, the water-passing net is 18-30 mesh/cm2, the ventilation net is 40-100 mesh/cm2, and the oil-passing net is 100-480 mesh/cm2.)
3. Working temperature: ≤90℃
4. Nominal diameter: DN25—DN600mm
5. Nominal pressure: PN≤1.6Mpa (other working pressures can be designed according to user requirements)
6. Flange standard: GB81-59 (can also be manufactured according to user requirements)
7. Shell material: A3, 304, 304L, 316, 316L
8. Sealing material: PTFE, nitrile rubber, oil-resistant asbestos rubber
Material :
Body | Grey Cast Iron /Ductile Iron |
Bonnet | Grey Cast Iron /Ductile Iron |
Plug | Carbon Steel |
Screen Fliter | Stainless Steel |
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
