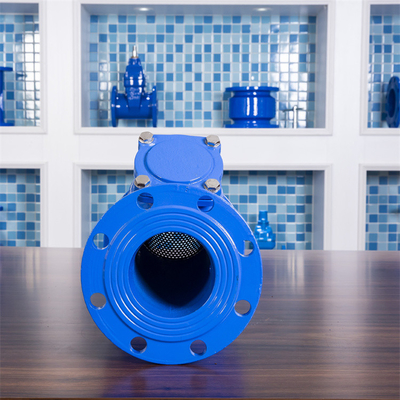

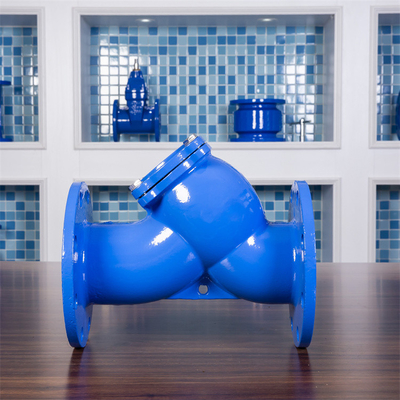

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150
Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150

Large Image :  Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150

Description
Type:: Ductile Iron Y Strainer Port Size:: DN100/DN150
Material:: Wate,tap Water,oil,food,STEAM Body Material:: QT400
Temperature Of Media: Low Temperature, Normal Temperature Pressure:: PN10/16
Highlight:

Flange y type strainer filter

,

Dn100 y type strainer filter

,

Dn150 strainer for water line

Ductile Cast Iron Dn100 Dn150 Y Type Strainer Filter Valve Flange Water Strainer



product description

The Y-type filter is mainly composed of: main body, filter screen, middle cover, middle plug, and middle fastener. The characteristics of this filter are: rapid flow, so small pressure loss, strong anti-fouling, and convenient slag discharge. Y-type filter is suitable for steam, air, kerosene, water, weak corrosive gas and liquid.



1. Suitable materials:
a. Weak corrosive materials in chemical and petrochemical production, such as: water, ammonia, oil, hydrocarbons, etc.;
b. Corrosive materials in chemical production, such as caustic soda, soda ash, concentrated sulfuric acid, carbonic acid, acetic acid, ester acid, etc.;
c. Low temperature materials in refrigeration, such as: liquid methane, liquid ammonia, liquid oxygen and various refrigerants;
d. Materials with hygienic requirements in the production of light industrial food and pharmaceuticals, such as beer, beverages, dairy products, grain, pulp and medical supplies, etc.
2. Filtration accuracy: 10-480 mesh (generally, the water-passing net is 18-30 mesh/cm2, the ventilation net is 40-100 mesh/cm2, and the oil-passing net is 100-480 mesh/cm2.)
3. Working temperature: ≤90℃
4. Nominal diameter: DN25—DN600mm
5. Nominal pressure: PN≤1.6Mpa (other working pressures can be designed according to user requirements)
6. Flange standard: GB81-59 (can also be manufactured according to user requirements)
7. Shell material: A3, 304, 304L, 316, 316L
8. Sealing material: PTFE, nitrile rubber, oil-resistant asbestos rubber



Material :

Body Grey Cast Iron /Ductile Iron
Bonnet Grey Cast Iron /Ductile Iron
Plug Carbon Steel
Screen Fliter Stainless Steel
y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307





y-type filter(reduced diameter) flange thickness flange outer circle structure length waterline height waterline diameter Height screen diameter filter length filter aperture center distance of filter weight length
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 0Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 1Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 2

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 3Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 5

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 6

Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 7





Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 8



Ductile Cast Iron Flange Y Type Strainer Filter Valve For Water Line Dn150 9





























































































































































































































































































































Q1. Can I have a sample order for valve? A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order? A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive? A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5: Are you products standard? A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items? A: Absolutely! We have big interest.
