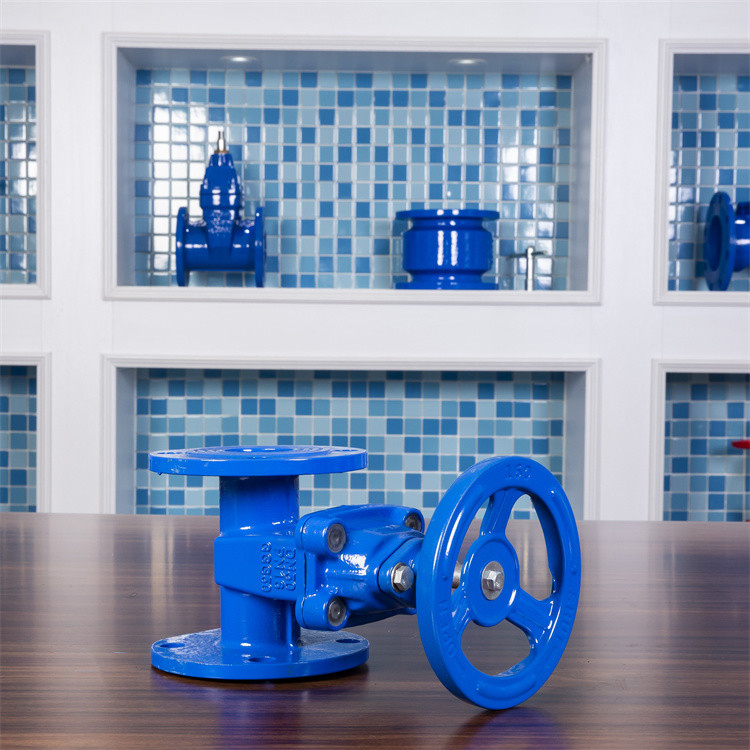

PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve

PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve
PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve

Large Image :  PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve

Product Details:
Place of Origin: China
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25
Payment Terms: T/T
Supply Ability: 100 tons/ month

PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve

Description
Name: F4 Soft Sealing Gate Valve Media: Water, Steam, Oil
Power: -25°-180° Work Pressure: PN10/PN16
Material: GGG50 Warranty: 1 Year
Color: Depend On Size OP: Hand Wheel
Surface: Powder Coating/Acid Pickling/Paint
High Light:

PN10 f4 Soft Seal Gate Valve

,

GGG50 PN16 Soft Seal Gate Valve

,

din f4 resilient seated gate valve

Soft Sealing Gate Valve GGG40 Water Gas Oil PN16 Iron DN50







product description:



Soft-sealed gate valve Z45X-16Q is an elastic seat soft-sealed gate valve produced by BAND Valves. It uses the overall rubber encapsulation to produce deformation compensation to achieve a good sealing effect, and overcomes the poor sealing, water leakage and rust of general gate valves.





Part name Meterial
Body Gray iron, ductile iron, cast steel
Gate Ductile iron+EPDM or NBR
Allen bolits Carbonization process
Seals NBR,EPDM
Bonnect Gray iron,ductile iron,cast steel
Stem Stainless steel
O-ring seals NBR
Thrust bearings Tin bronze
Bolt Carbon steel,ally steel
Gland Ductile iron,cast steel
Dust Cover NBR
Hand wheel Malleable iron



PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve 0



PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve 1



PN10 GGG50 PN16 Soft Seal Gate Valve Din F4 Resilient Seated Gate Valve 2
