Product Details:
|
| Type:: | Gate Valve | Connection: | Flange Ends |
|---|---|---|---|
| Temperature: | 0-80℃ | Pressure: | PN10/16 |
| Material: | Ductile Iron QT450-10 | Media: | Water, Water Gas Oil Etc |
| Structure: | Control | Port Size: | DN100 |
| Color: | Random | Valve Size: | Can Be Customized |
| Flange Thickness: | Can Be Customized | ||
| Highlight: | Copper Gland soft sealing gate valve,DN600 soft sealing gate valve,GGG50 Resilient cast iron gate valve |
||

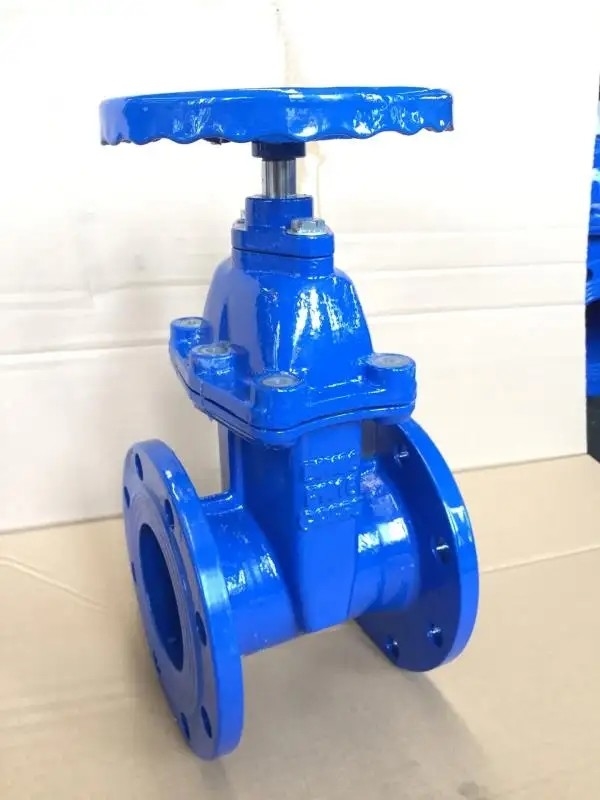

The elastic seat gate valve is also called the drop-rod gate valve. Its opening and closing part is the gate, and the gate has a double sealing surface. During the opening and closing operation, most of the gate valves use mandatory sealing. The sealing surface of the elastic seat gate valve relies on the pressure generated by the medium to achieve sealing, which is a kind of self-sealing. It can be used in sewage systems or in harsh environments.
Model of elastic seat seal gate valve:
①Z45X-10/16Q elastic seat gate valve: Biaoguang Valve has introduced advanced valve manufacturing technology, superb technical content, and produced gate valves according to national standards. The valve adopts the technology of overall encapsulation to achieve zero leakage and reliable sealing, which overcomes the defects of traditional gate valves such as poor sealing, easy water leakage and rust.
②Z41X-10/16Q elastic seat gate valve: the inner cavity of the valve is made of non-toxic epoxy resin coating, which can not only prevent corrosion and rust, but also provide raw drinks. It is widely used in medium pipelines such as tap water, petroleum, sewage, electricity, medicine, metallurgy, ships, chemical food, construction, energy systems, etc. It is used as regulation or interception.
| Part name | Material |
| Body | Gray iron, ductile iron, cast steel |
| Gate | Ductile iron+EPDM or NBR |
| Allen bolits | Carbonization process |
| Seals | NBR,EPDM |
| Bonnect | Gray iron,ductile iron,cast steel |
| Stem | Stainless steel |
| O-ring seals | NBR |
| Thrust bearings | Tin bronze |
| Bolt | Carbon steel,ally steel |
| Gland | Ductile iron,cast steel |
| Dust Cover | NBR |
| Hand wheel | Malleable iron |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
