Product Details:
|

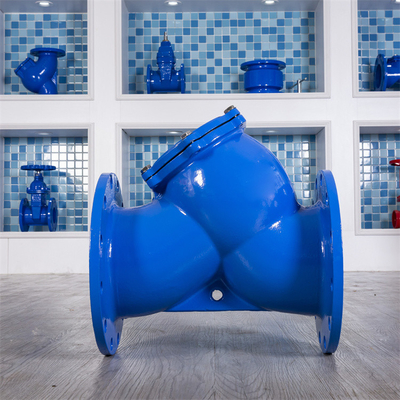

Type:: | Ductile Iron Y Strainer | Port Size:: | DN150 |
---|---|---|---|
Material:: | Wate,tap Water,oil,food,STEAM | Body Material:: | QT450 |
Temperature Of Media: | Low Temperature, Normal Temperature | Pressure:: | PN10 |
Highlight: | Carbon Steel Cast Iron Y Filter,QT450 Dn150 Cast Iron Y Filter,PN10 Flanged Wye Strainer |
The Y-type filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it needs to be cleaned, it is only necessary to take out the detachable filter cartridge and reload it after processing.
Therefore, it is extremely convenient to use and maintain. Y-type filter, also known as decontamination device and filter valve, is an indispensable device in the pipeline system for conveying medium. Particles, etc. are filtered to protect the fittings on the equipment pipeline from wear and blockage, which can protect the normal operation of the equipment.
Material :
Body | Grey Cast Iron /Ductile Iron |
Bonnet | Grey Cast Iron /Ductile Iron |
Plug | Carbon Steel |
Screen Fliter | Stainless Steel |
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |
Steam or gas pipeline: the screen is horizontal;
Liquid pipeline: the filter screen is installed downward;
Vertical installation: Point to [1] according to filter installation.
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Y-type filter is an indispensable device on the pipeline for conveying medium. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to eliminate impurities in the medium to protect valves and equipment. normal use. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet.
When cleaning is required, just take out the detachable filter cartridge and reload it after processing. Yes, the Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge. The suitable medium of Y-type filter can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh.
The telescopic filter of water meter is an indispensable device in the medium pipeline. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to eliminate impurities in the medium, so as to protect the normal use of the valve and equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, just take out the detachable filter cartridge and put it in again after treatment. Therefore, it is convenient to use and maintain. Can be widely used in steam, air, water, oil and other media in the pipeline, protect the pipeline system equipment, pumps, valves from pipeline, rust, welding slag and other impurities from blocking and damage.
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
