Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer

Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer
Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer

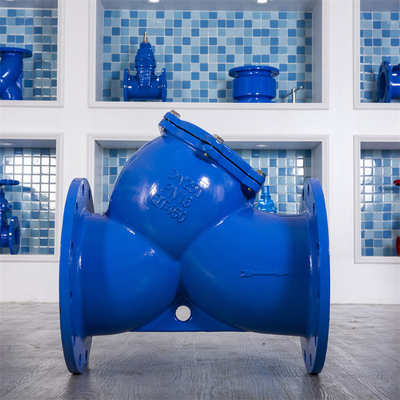

Large Image :  Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer

Description
Type:: Ductile Iron Y Strainer Port Size:: DN250
Material:: Wate,tap Water,oil,food,STEAM Body Material:: Ggg50
Temperature Of Media: Low Temperature, Normal Temperature Pressure:: PN10
Highlight:

Ductile cast iron y type strainer

,

PN10 cast iron y type strainer

,

DIN flange end y type strainer



Ggg 50 Ductile Iron Blue Flanged Type DIN Standard Y-Strainer



product description

The Y-type filter is a small device that removes a small amount of solid particles in the liquid, which can protect the normal operation of the equipment. When the fluid enters the filter cartridge with a certain size filter screen, its impurities are blocked, and the clean filtrate is discharged from the filter outlet. When it needs to be cleaned, it is only necessary to take out the detachable filter cartridge and reload it after processing. Therefore, it is extremely convenient to use and maintain. Y-type filter, also known as decontamination device and filter valve, is an indispensable device in the pipeline system for conveying medium. Particles, etc. are filtered to protect the fittings on the equipment pipeline from wear and blockage, which can protect the normal operation of the equipment.

The telescopic filter of water meter is an indispensable device in the medium pipeline. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to eliminate impurities in the medium, so as to protect the normal use of the valve and equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, just take out the detachable filter cartridge and put it in again after treatment. Therefore, it is convenient to use and maintain. Can be widely used in steam, air, water, oil and other media in the pipeline, protect the pipeline system equipment, pumps, valves from pipeline, rust, welding slag and other impurities from blocking and damage.



Material :

Body Grey Cast Iron /Ductile Iron
Bonnet Grey Cast Iron /Ductile Iron
Plug Carbon Steel
Screen Fliter Stainless Steel
y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307



Steam or gas pipeline: the screen is horizontal;
Liquid pipeline: the filter screen is installed downward;
Vertical installation: Point to [1] according to filter installation.





y-type filter(reduced diameter) flange thickness flange outer circle structure length waterline height waterline diameter Height screen diameter filter length filter aperture center distance of filter weight length
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 0Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 1Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 2

Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 3Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 5

Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 6

Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 7





Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 8



Ductile Cast Iron Y Type Strainer Blue DIN Flange End Y Type Strainer 9





























































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
