Product Details:
|

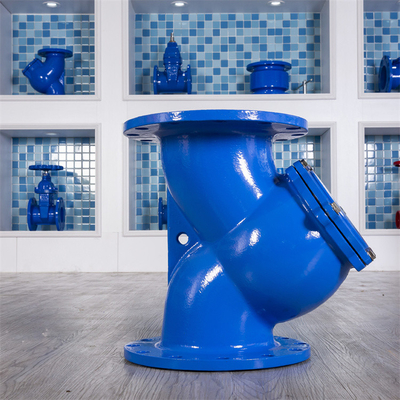

Type:: | Ductile Iron Y Strainer | Port Size:: | DN80 |
---|---|---|---|
Material:: | Ggg50 | Media:: | Gas,Water And Steam |
Temperature Of Media: | Low Temperature, Normal Temperature | Pressure:: | PN16 |
Highlight: | Water Meter Cast Iron Y Filter,GGG50 Cast Iron Y Filter,DN80 cast iron y type strainer |
Purpose
This product is mainly set on various water supply and drainage or steam and gas pipelines and used to protect other piping or valve from getting damaged by the fragments and impurities in the system.
Features
The telescopic filter of water meter is an indispensable device in the medium pipeline. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, constant water level valve or other equipment to eliminate impurities in the medium, so as to protect the normal use of the valve and equipment. When the fluid enters the filter cartridge with a certain size filter, the impurities are blocked, and the clean filtrate is discharged from the outlet of the filter. When cleaning is needed, just take out the detachable filter cartridge and put it in again after treatment. Therefore, it is convenient to use and maintain. Can be widely used in steam, air, water, oil and other media in the pipeline, protect the pipeline system equipment, pumps, valves from pipeline, rust, welding slag and other impurities from blocking and damage.
Material :
Body | Grey Cast Iron /Ductile Iron |
Bonnet | Grey Cast Iron /Ductile Iron |
Plug | Carbon Steel |
Screen Fliter | Stainless Steel |
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |
Application
Our Strainer are widely used in: independent heating systems; central heating systems; floor radiant heating systems; solar heating systems; heat pump systems; central air conditioning; heating boilers, etc.
Our products include hydraulic control valve series, balance valve series, soft seal hair series, multi-fun ction water pump control valve series, butterfly valve series, check valve series, groove valve series, fire special valve and stainless steel corrugated compensator, etc. A series of more than 1000 specifications.
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
