QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

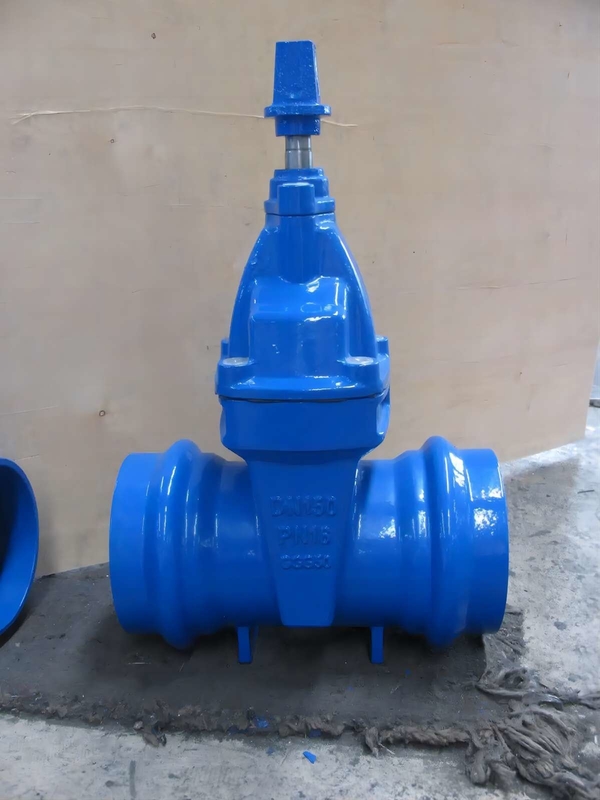

QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting

QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting
QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting

Large Image :  QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50-DN300
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 200 tons/ month

QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting

Description
Type:: Socket Gate Valve Pressure:: Pn10/pn16
Temperature:: -20 ~100℃ Connection:: Flange Ends
Media: Water,oil,gas,Water/gas/oil/sewage Model: DN50-DN300
Material: Ductile Iron Material Model: GGG40/GGG50/QT450
Handwheel Material: Carbon Steel Nut Material: Ductile Iron
Stem Nut: Carbon Steel/copper Bonnet Nut: Carbon Steel
Power: Manual
Highlight:

QT400 Elastic Seat Gate Valve

,

Elastic Seat Gate Valve Wear Resisting

,

QT450 Cast Iron Gate Valve



Cast Iron Socket-Type Elastic Seat Seal Gate Valve DN50-DN300 PN10/16-30-200 ° Can Be Customized QT450/Ggg50/Ggg40



product description



1. The opening and closing direction of the resilient seat seal gate valve shall be closed clockwise.
2. Because the pneumatic valve in the pipe network is often opened and closed manually, the number of opening and closing revolutions should not be too much, even the large-diameter valve should also be within 200-600 revolutions.
3. In order to facilitate the opening and closing operation of one person, the maximum opening and closing torque should be 240N-m under the condition of pipe pressure.
4. The opening and closing operating end of the resilient seat seal gate valve shall be square tenon, with standardized size and facing the ground, so that people can operate directly from the ground. Valves with discs are not suitable for underground pipe networks.
5. Display panel for opening and closing degree of resilient seat seal gate valve
① The scale line of the opening and closing degree of the resilient seat sealing gate valve shall be cast on the gearbox cover or the shell of the display panel after the direction change, all of which shall face the ground, and the scale line shall be painted with fluorescent powder to show eye-catching;
② The material of indicator dial needle can be made of stainless steel plate under good management, otherwise it is painted steel plate, and aluminum sheet is not allowed to be used;
③ The indicator dial needle is eye-catching and firmly fixed. Once the opening and closing adjustment is accurate, it should be locked with rivets.
6. If the resilient seat seal gate valve is buried deep and the distance between the operating mechanism and the display panel from the ground is ≥ 1.5m, an extension rod facility shall be provided and fixed firmly so that people can observe and operate from the ground. In other words, the valve opening and closing operation in the pipe network is not suitable for downhole operation.



QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 0QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 1QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 2



company  profile


Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 3

QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 4



QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 5

QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 6



QT450 Ggg50 Ggg40 QT400 Cast Iron Elastic Seat Gate Valve Wear Resisting 7

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
