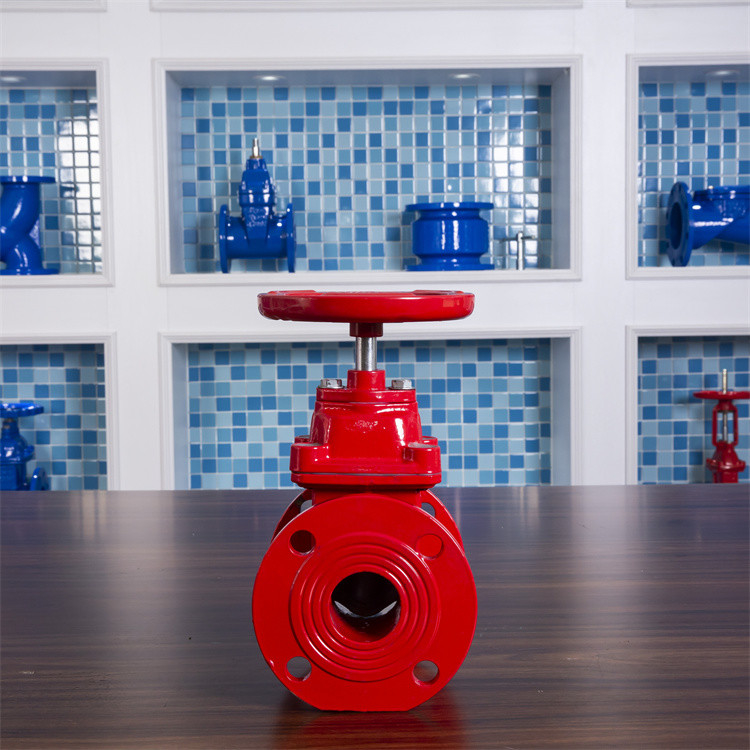

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil
Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil

Large Image :  Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50-DN600
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil

Description
Type:: Elastic Gate Valve Pressure:: PN16/PN10
Temperature:: -20 ~180℃ Connection:: Flange Ends
Media: Water,oil,gas,Water/gas/oil/sewage Model: DN50-DN300
Material: Ductile Iron Material Model: QT450/QT400
Handwheel Material: Carbon Steel Nut Material: Ductile Iron
Stem: Stainless Steel Stem Nut: Carbon Steel/copper
Bonnet: Ductile Iron Bonnet Nut: Carbon Steel
Highlight:

Ductile Iron Flange Gate Valve

,

Elastic Flange Gate Valve

,

QT450 QT400 PN16 Gate Valve



Copper screw female Elastic Seat Gate Valve German Standard Soft Seal Gate Valve DN100 Pn16/10 DN300 QT450/QT400/GGG50/GGG40



product description



For a long time, the general gate valves used in the market generally have water leakage or rust. The elastic seat sealing gate valve produced by the company introduced high-tech rubber and valve manufacturing technology from Europe, which overcomes the defects of poor sealing and rusting of general gate valves. The sealing gate valve uses the compensation effect of the elastic gate to produce a small amount of elastic deformation to achieve a good sealing effect. The valve has significant advantages such as light switch, reliable sealing, good elastic memory and service life. It can be widely used in tap water, sewage, construction, petroleum, chemical industry, food, medicine, textile, electric power, shipbuilding, metallurgy, energy system and other pipelines as regulation and interception devices. Light weight: The body is made of high-grade ductile black cast iron, which is about 20%~30% lighter than the traditional gate valve, and is easy to install and maintain. Flat-bottomed gate seat: The traditional gate valve often accumulates in the groove at the bottom of the valve due to foreign objects such as stones, wood blocks, cement, iron filings, sundries, etc. after the pipe is washed with water, which is easy to cause the water leakage phenomenon that cannot be closed tightly. The bottom of the elastic seat seal gate valve adopts the same flat-bottom design as the water pipe machine, which is not easy to cause debris accumulation and makes the fluid flow unobstructed. Overall rubber coating: The gate is made of high-quality rubber for the overall inner and outer coating. The European {yl} rubber vulcanization technology enables the vulcanized gate to ensure the geometric size of xx, and the rubber and the ductile cast gate are firmly connected, and it is not easy to Good shedding and elastic memory. Hydraulic precision casting valve body: The valve body adopts precision casting, and the geometric size of xx makes the inner part of the valve body do not need xx precision machining to ensure the tightness of the valve. RVEX electric elastic seat sealing gate valve can be equipped with various electric actuators according to the requirements of users to realize remote control and automatic control. It has the advantages of sensitivity, reliability, and convenient installation. It can be widely used in tap water, sewage, construction, petroleum , Chemical, food, medicine, textile, electric power, shipbuilding, metallurgy, energy system and other fluid pipelines are used as regulating and shut-off devices.





Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 0Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 1Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 2



company  profile


Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 3

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 4



Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 5

Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 6



Ductile Iron Flange Gate Valve PN16 Elastic QT450 QT400 Water Gas Oil 7

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
