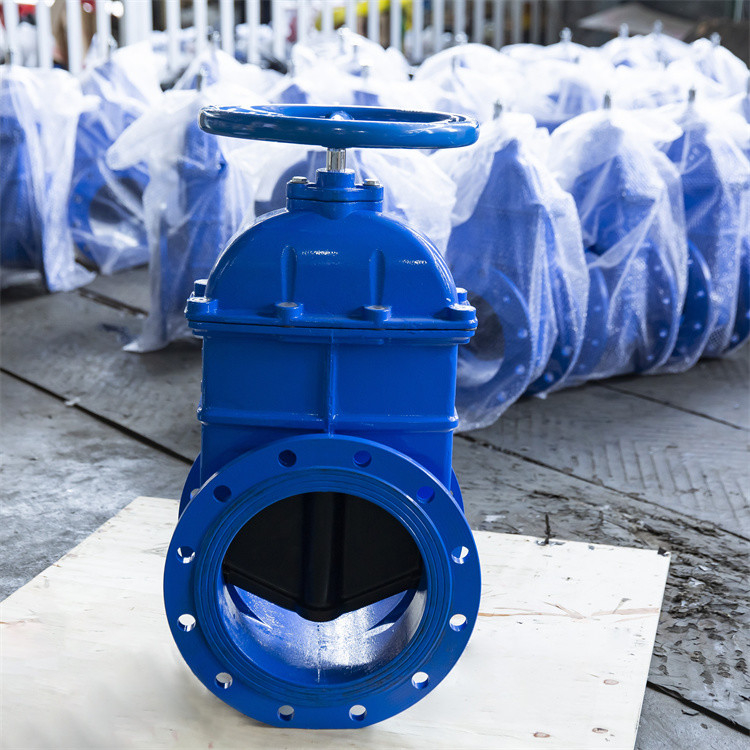

DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve

DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve
DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve

Large Image :  DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN300
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve

Description
Type:: F4 Elastic Gate Valve Pressure:: PN10
Temperature:: -20 ~180℃ Connection:: Flange Ends
Media: Water,oil,gas,Water/gas/oil/sewage Model: DN50-DN300
Material: Ductile Iron Material Model: QT450/QT400
Handwheel Material: Carbon Steel Nut Material: Ductile Iron
Stem: Stainless Steel Stem Nut: Carbon Steel/copper
Bonnet: Ductile Iron Bonnet Nut: Carbon Steel
Seat Rubber: Silica Gel Gland: Iron
Highlight:

DN300 sewage gate valve

,

QT450 QT400 sewage gate valve

,

Elastic pn10 gate valve



Copper screw female Elastic Seat Gate Valve German Standard Soft Seal Gate Valve DN100 Pn16/10 DN300 QT450



product description



The opening and closing part of the gate valve is the gate, and the movement direction of the gate is perpendicular to the direction of the fluid. The gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate of the wedge gate valve can be made into a whole, called a rigid gate; it can also be made into a gate that can produce a small amount of deformation to improve its manufacturability and make up for the deviation of the sealing surface angle during processing. The plate is called an elastic gate. When the gate valve is closed, the sealing surface can be sealed only by the medium pressure, that is, relying on the medium pressure to press the sealing surface of the gate to the valve seat on the other side to ensure the sealing of the sealing surface, which is self-sealing. Most gate valves are forced to seal, that is, when the valve is closed, the gate must be forced to the valve seat by external force to ensure the tightness of the sealing surface. The gate of the gate valve moves in a straight line with the valve stem, which is called a lifting rod gate valve, also called a rising rod gate valve. Usually, there is a trapezoidal thread on the lift rod. Through the nut at the top of the valve and the guide groove on the valve body, the rotary motion is changed into a linear motion, that is, the operating torque is changed into an operating thrust. When the valve is opened, when the lift height of the gate is equal to 1:1 times the diameter of the valve, the fluid channel xx is unobstructed, but this position cannot be monitored during operation. In actual use, the apex of the valve stem is used as a sign, that is, the position where it cannot be opened, as its fully open position. In order to take into account the lock-up phenomenon caused by temperature changes, it is usually opened to the top position, and then back to 1/2-1 turn, as the position of the fully open valve. Therefore, the fully open position of the valve is determined according to the position of the gate, that is, the stroke. For some gate valves, the valve stem nut is set on the gate plate, and the rotation of the handwheel drives the valve stem to rotate, which makes the gate plate lift. This kind of valve is called a rotating stem gate valve or a dark stem gate valve.





DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 0DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 1



company  profile


Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 2

DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 3



DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 4

DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 5



DN300 Sewage Gate Valve Ductile Iron QT450 QT400 Elastic Pn10 Gate Valve 6

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
