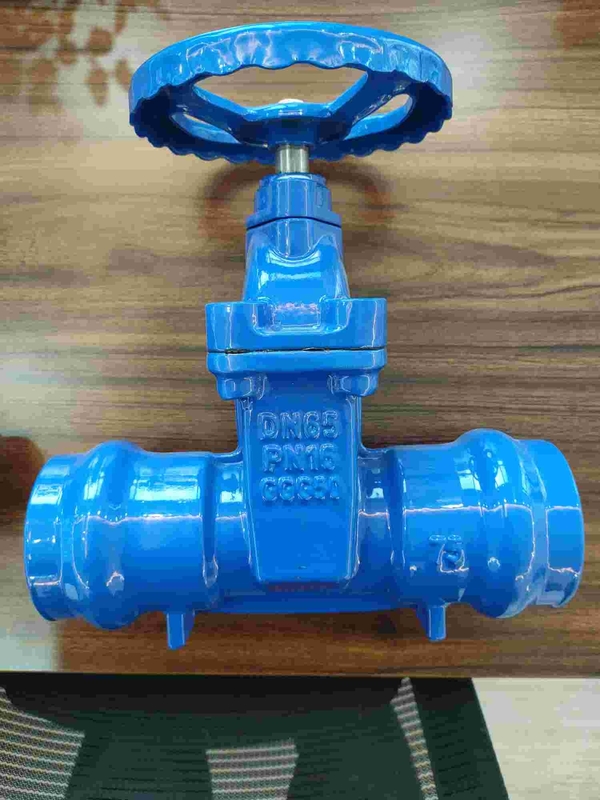

Low operating torque Ductile Iron Socket Gate Valve DN50-DN300mm

Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm
Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm

Large Image :  Low operating torque Ductile Iron Socket Gate Valve DN50-DN300mm

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DDN50-DN300
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Low operating torque Ductile Iron Socket Gate Valve DN50-DN300mm

Description
Type:: Socket Gate Valve Pressure:: Pn10/pn16
Temperature:: -20 ~200℃ Connection:: Flange Ends
Media: Water,oil,gas,Water/gas/oil/sewage Model: DN50-DN300
Material: Ductile Iron Material Model: GGG40/GGG50/QT450/QT400
Handwheel Material: Carbon Steel Nut Material: Ductile Iron
Stem: Stainless Steel Stem Nut: Carbon Steel/copper
Bonnet: Ductile Iron Bonnet Nut: Carbon Steel
Highlight:

Ductile Iron Gate Valve DN300mm

,

Low operating torque Socket Gate Valve

,

Socket Gate Valve DN300mm



Socket-Type Ductile Iron Rubber Seal Gate Valve DN50-DN300 Pn16/10  GGG50/QT450/GGG40/QT400

product description



Socket-type soft seal gate valve is a gate valve with an elastic wedge as the opening and closing disc, and its movement direction is perpendicular to the flow direction. The gate valve can only be fully opened or closed. It is widely used in a series of industries, especially water supply engineering, municipal engineering, water treatment plant, fire protection and other fields. The soft seal gate valve can be manufactured for water-rich fluid according to DIN3202 standard, and the valve diameter is 2 "~12" (DN50~300mm).
1. Features:
·Full bore design
·Self-cleaning, low pressure loss
·The rolled valve rod ensures smooth thread edge and double thread
·Low operating torque
·The valve body is well marked and clear (the casting is from the same foundry as AVK valve and Spanish TALIS)
·Online replacement can be realized under full pressure when the valve is fully open; Three O-rings protect the upper valve rod to prevent impurities from entering from the direction of water flow
·Each valve has passed 100% test before packaging and delivery
2. Standards
·Design&production: EN1171
·Structure length: EN558-1 series 15
·PVC pipe socket
·Detection&test: EN12266-1
3. Technical specifications
·Working pressure: PN10/PN16 Bar
·Size: 2 "~16" (DN50~400mm)
·Material: gray cast iron, nodular cast iron
·Epoxy resin thickness: ≥ 250 microns
·Applicable temperature: 0 ℃~+80 ℃
·Configurable handwheel/square cap/gear box/electric actuator
4. Application
·Water supply system
·Sewage, sludge and sewage treatment industry
·Irrigation system
·Real estate industry
·Mining and steel industry
·Metallurgical plant and power plant
·Textile and pharmaceutical industries
·Food and pharmaceutical industry



Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 0
Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 1

                                                                                                Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 2



company  profile


Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 3

Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 4



Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 5

Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 6



Low operating torque Ductile Iron Socket  Gate Valve DN50-DN300mm 7

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
