Product Details:
|
Type:: | Muffler Check Valve | Port Size:: | DN100 |
---|---|---|---|
Product Name:: | Metal Check Valves | Bonnet Material:: | Ductile Iron Ggg40 |
Media:: | Water | Pressure:: | PN16 |
Highlight: | Ggg40 Vertical Muffler Check Valve,PN16 DN100 Muffler Check Valve,Backstop non return valve flange type |
product description

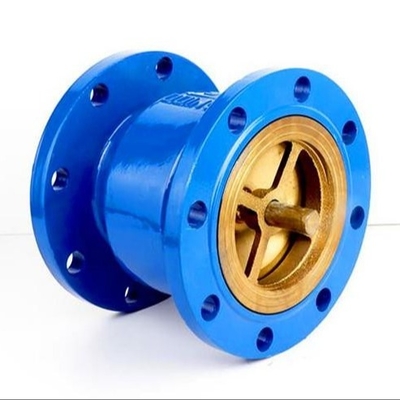

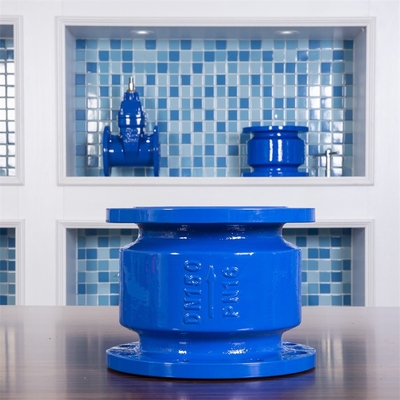

Muffler check valve refers to the valve that automatically opens and closes the valve flap by relying on the flow of the medium itself to prevent the backflow of the medium, also known as check valve, one-way valve, muffler check valve reverse flow valve, and back pressure valve. The check valve is an automatic valve whose main function is to prevent the backflow of the medium, the reverse rotation of the pump and the driving motor, and the discharge of the medium in the container. Check valves may also be used on lines supplying auxiliary systems where pressure may rise above system pressure. Check valves can be mainly divided into swing check valves (rotating according to the center of gravity) and lift check valves (moving along the axis)
Muffler Check Valve | flange thickness | flange outer circle | waterline height | waterline diameter | length | weight |
DN50 | 16 | 160 | 2 | 102 | 124 | 5.5 |
DN65 | 15.5 | 180 | 2 | 122 | 135 | 6.8 |
DN80 | 17 | 195 | 2 | 133 | 155 | 8.5 |
DN100 | 17.5 | 215 | 2 | 156 | 170 | 11.5 |
DN125 | 20 | 245 | 2 | 186 | 196 | 15.3 |
DN150 | 21 | 280 | 2 | 208 | 210 | 22 |
DN200 | 21 | 335 | 2 | 265 | 261 | 31.5 |
