Product Details:
|
| Application: | General, Petrochemical Engineering | Product Name:: | Silencing Check Valve Pn10 Pn16 |
|---|---|---|---|
| Body Material: | Cast Iron, Ductile Iron, Carbon Steel | Media: | Water Oil Gas |
| Pressure: | PN10/PN16 | Model Number: | FLH41X-16 |
| Port Size: | DN50~DN350 | Structure: | Check, Check Valve |
| Highlight: | Pn10 Muffler Check Valve,Hc41x Energy Saving Muffler Check Valve,DN350 Silencing Check Valve |
||

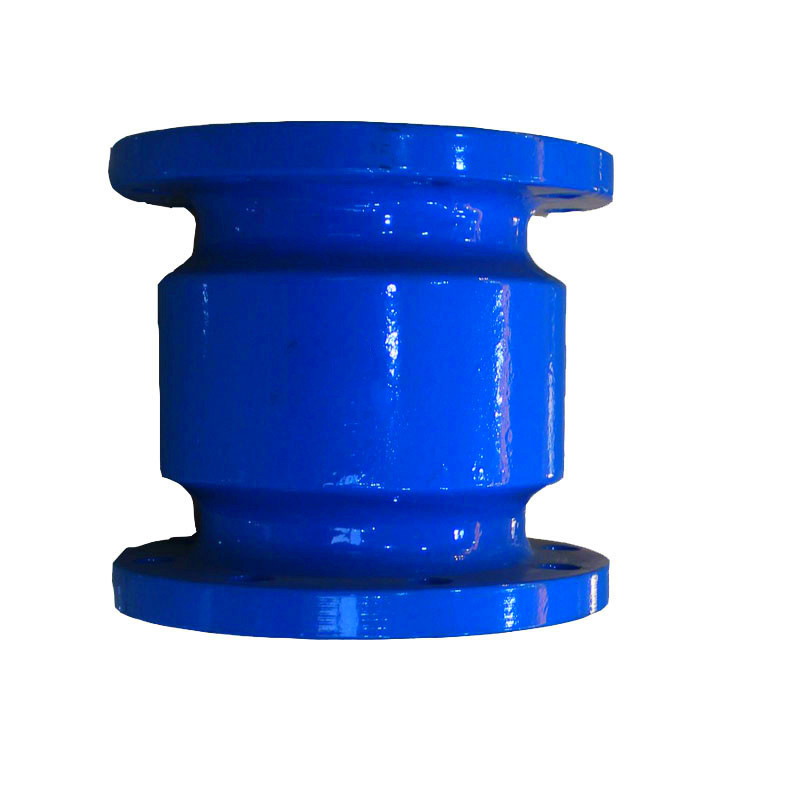

Muffler check valve HC41X performance characteristics:
① The inner cavity of the valve body adopts a streamlined design, and the flow rate is designed according to 100% to reduce sharp bends, corners, and sharp protrusions, thereby reducing the resistance of the fluid;
② The front and rear of the valve disc are designed to be tapered, which greatly reduces the fluid resistance and reduces the noise caused by turbulent flow;
③ The closing stroke of the valve disc is short, only 1/4 of the nominal diameter, which reduces the closing time of the valve disc and reduces the generation of water hammer;
④ The valve uses a spring to accelerate the closing speed of the valve disc and reduce the generation of water hammer;
⑤ The valve disc is a hollow thin shell structure, which reduces the inertia of the valve disc, which not only enables the valve disc to start quickly when it is closed, but also reduces the impact noise when it is closed;
⑥ This product can be installed vertically, horizontally, obliquely and at any angle;
⑦ The inner and outer surfaces are sprayed with environmental protection coating to ensure the anti-corrosion and safety of the product.
The main shape and connection dimensions of Check Valve
| Part Name | material |
| Body | Cast iron, ductile iron, carbon steel |
| Flow guide | Cast iron, ductile iron, carbon steel |
| Seat | Bronze,chrome stainless steel |
| Disc | Bronze,chrome stainless steel |
| axis | Bronze,chrome stainless steel |
| spring | stainless steel |
MATERIAL:
|
NO.
|
PART
|
MATERIAL
|
||
|
1
|
Body
|
Cast Iron Cast steel HT250 WCB ect.
|
||
|
2
|
Seat
|
Stainless steel
|
||
|
3
|
Disc
|
WCB Rubber Assemby Q235-A ect.
|
||
|
4
|
Stem
|
Stainless steel Q235-A 45
|
||
|
5
|
Spring
|
Stainless steel
|
||
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
| Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
| Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
| Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
| Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
| Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
| Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
