Product Details:
|
Application: | General, Petrochemical Engineering | Product Name:: | H41X Energy Saving Silencing Check Valve |
---|---|---|---|
Bonnet Material:: | Ductile Iron/Grey Iron | Media: | Water Oil Gas |
Pressure: | PN10/PN16 | Model Number: | FLH41X-16 |
Port Size: | DN50~DN350 | Structure: | Check, Check Valve |
Highlight: | Ductile Iron silent type check valve,Hc41x silent type check valve,Dn450 pn16 non return valve |
The opening and closing parts of the check valve are automatically opened or closed by the flow and force of the medium to prevent the backflow of the medium. Check valves are generally divided into four types: lift, swing, butterfly and horizontal. The general lift check valve should be installed on the horizontal pipeline, and the vertical lift check valve and bottom valve are generally installed in On the vertical pipeline, and the medium flows from bottom to top, the installation position of the swing check valve is not limited. It is usually installed on the horizontal pipeline, but it can also be installed on the vertical pipeline or the dumping pipeline. Note: The check valve only allows the medium to flow in one direction. Special attention should be paid to the flow direction of the medium. The normal flow direction of the medium should be consistent with the direction of the arrow indicated on the valve body, otherwise the normal flow of the medium will be cut off.

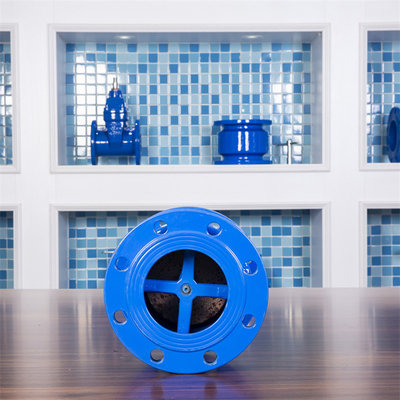

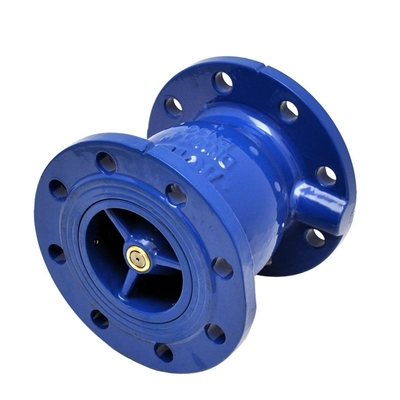

HC41X energy-saving muffler check valve is suitable for water supply and drainage pipelines. The valve disc is guided by the central axis at both ends of the inlet, and it can be opened and closed flexibly. It can be installed horizontally or vertically. HC41X energy-saving muffler check valve disc is spring loaded, and its quick closing can effectively eliminate water hammer, with good sealing performance and no noise when closing. HC41X energy-saving muffler check valve has the advantages of small size, light weight, low fluid resistance, fatigue resistance and long life.
The main shape and connection dimensions of Check Valve
Part Name | material |
Body | Cast iron, ductile iron, carbon steel |
Flow guide | Cast iron, ductile iron, carbon steel |
Seat | Bronze,chrome stainless steel |
Disc | Bronze,chrome stainless steel |
axis | Bronze,chrome stainless steel |
spring | stainless steel |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
