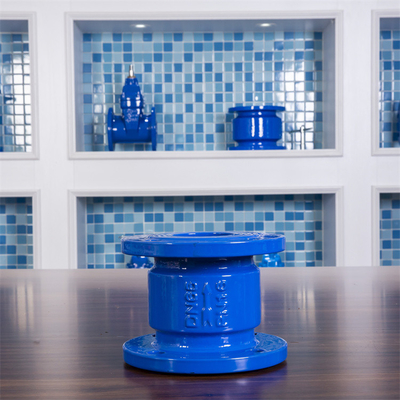

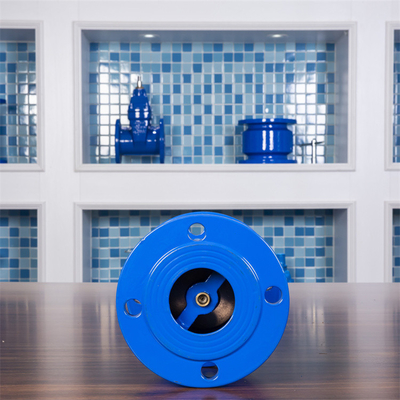

Product Details:
|
Type:: | Silencing Check Valve | Connection: | Flange Ends |
---|---|---|---|
Temperature: | 0-80℃ | Pressure: | PN10/16 |
Material: | Ductile Iron QT450-10 | Media: | Water, Water Gas Oil Etc |
Structure: | Control | Port Size: | DN65 |
Highlight: | Industrial GGG40 check valve flange type,Silencing check valve flange type,DN65 small check valves for water |
The function of the muffler check valve is to prevent the flow in the opposite direction, only allowing the medium to flow in one direction. Usually the valve operates automatically, with the disc opening under pressure of a fluid flowing in one direction; When the fluid flows in the opposite direction, the self-coincidence disc of the fluid pressure and the disc acts on the seat, thus cutting off the flow. Not suitable for medium containing solid particles and high viscosity. Silent check: valve in which the disc slides along the centerline of the body. Pipe check valve is a new valve, its small volume, light weight, good processing technology, is one of the development direction of check valve. But the fluid resistance coefficient is slightly larger than swing check valves.
1. During the use of the valve, the medium flows in the direction of the arrow shown.
2. When the medium flows in the specified direction, the valve disc is opened by the force of the medium; Medium countercurrent, due to the weight of the valve disc and valve disc by the medium reverse force, so that the sealing surface of the valve disc and seat close, to prevent the purpose of media countercurrent.
3. The sealing surface of valve body and disc is made of stainless steel.
4. The structure length conforms to GB/T12221-2005 standard, and the flange connection conforms to GB/T17241.6-2008 standard.
Info :
DN | 40-800 mm |
PN | 1.0----1.6 MPa |
Suitable temperatur | 100 C max |
Media | Water, gas, oil. |
Silencing check valve | flange thickness (mm) | flange outer circle (mm) | waterline height (mm) | waterline diameter (mm) | Length (mm) | Weight (KG) |
DN50 | 16 | 160 | 2 | 102 | 124 | 5.5 |
DN65 | 15.5 | 180 | 2 | 122 | 135 | 6.8 |
DN80 | 17 | 195 | 2 | 133 | 155 | 8.5 |
DN100 | 17.5 | 215 | 2 | 156 | 170 | 11.5 |
DN125 | 20 | 245 | 2 | 186 | 196 | 15.3 |
DN150 | 21 | 280 | 2 | 208 | 210 | 22 |
DN200 | 21 | 335 | 2 | 265 | 261 | 31.5 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
