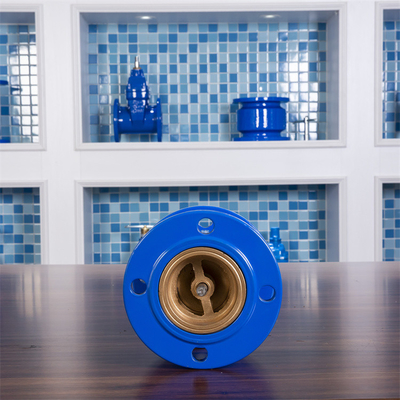

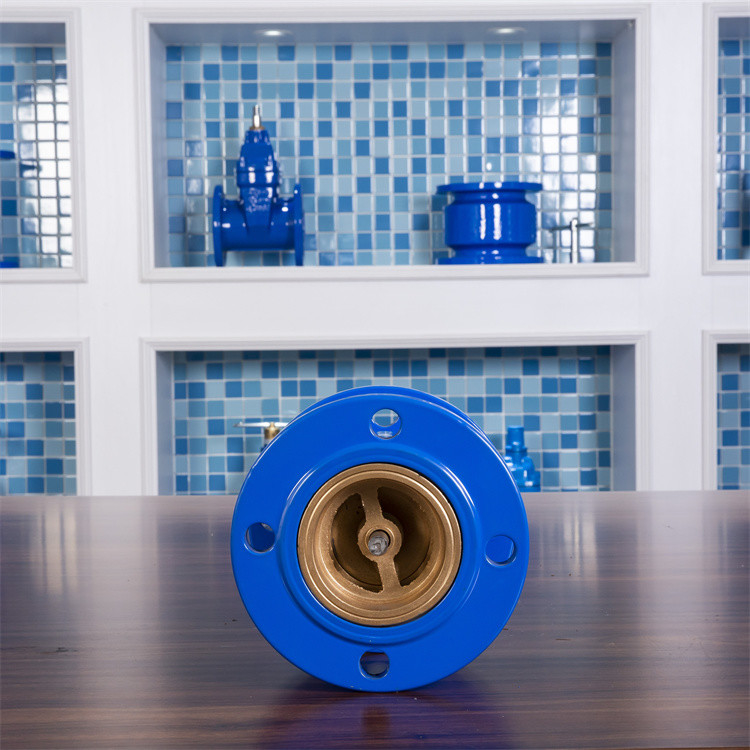

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve
GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve

Large Image :  GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN65
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 10000 pcs/ month

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve

Description
Type:: Silencing Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN10/16
Material: Ductile Iron QT450-10 Media: Water, Water Gas Oil Etc
Structure: Control Port Size: DN65
Highlight:

GGG40 Muffler ductile iron check valve

,

DN65 ductile iron check valve

,

Flange Connected Silencing Check Valve

GGG40 Muffler Check Valve DN65 PN10/16 High Quality Ductile Iron Flange Connected Silencing Check Valve



product description

Silent check: valve in which the disc slides along the centerline of the body. Pipe check valve is a new valve, its small volume, light weight, good processing technology, is one of the development direction of check valve. But the fluid resistance coefficient is slightly larger than swing check valves. The function of the muffler check valve is to prevent the flow in the opposite direction, only allowing the medium to flow in one direction. Usually the valve operates automatically, with the disc opening under pressure of a fluid flowing in one direction; When the fluid flows in the opposite direction, the self-coincidence disc of the fluid pressure and the disc acts on the seat, thus cutting off the flow. Not suitable for medium containing solid particles and high viscosity.





Info :

DN 40-800 mm
PN 1.0----1.6 MPa
Suitable temperatur 100 C max
Media Water, gas, oil.



Silencing check valve flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Length (mm) Weight (KG)
DN50 16 160 2 102 124 5.5
DN65 15.5 180 2 122 135 6.8
DN80 17 195 2 133 155 8.5
DN100 17.5 215 2 156 170 11.5
DN125 20 245 2 186 196 15.3
DN150 21 280 2 208 210 22
DN200 21 335 2 265 261 31.5




GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 0GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 1

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 2GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 4

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 5

GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 6





GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 7



GGG40 Muffler Ductile Iron Check Valve DN65 Flange Connected Silencing Check Valve 8





































































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
