PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

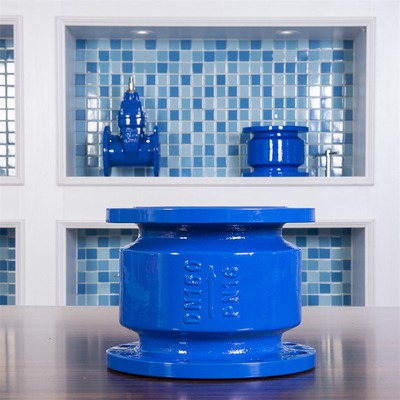

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil
PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil

Large Image :  PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50/65/100/150/200
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 10000 pcs/ month

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil

Description
Type:: Silencing Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN10/16
Material: Ductile Iron QT450-10 Media: Water, Water Gas Oil Etc
Structure: Control Port Size: DN50 DN65 DN100 DN150 DN200
Highlight:

PN10 Cast Iron Silent Check Valve

,

DN150 Cast Iron Silent Check Valve

,

QT400 dn200 check valve

Chinese Manufacturer Wholesale GGG40 GGG50 QT400 QT450 Silencing check valve DN50 DN65 DN80 DN100 DN150 DN200 PN10 PN16



product description

The function of the muffler check valve is to prevent the flow in the opposite direction, only allowing the medium to flow in one direction. Usually the valve operates automatically, with the disc opening under pressure of a fluid flowing in one direction; When the fluid flows in the opposite direction, the self-coincidence disc of the fluid pressure and the disc acts on the seat, thus cutting off the flow. Not suitable for medium containing solid particles and high viscosity. Silent check: valve in which the disc slides along the centerline of the body. Pipe check valve is a new valve, its small volume, light weight, good processing technology, is one of the development direction of check valve. But the fluid resistance coefficient is slightly larger than swing check valves.







Info :

DN 40-800 mm
PN 1.0----1.6 MPa
Suitable temperatur 100 C max
Media Water, gas, oil.



Silencing check valve flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Length (mm) Weight (KG)
DN50 16 160 2 102 124 5.5
DN65 15.5 180 2 122 135 6.8
DN80 17 195 2 133 155 8.5
DN100 17.5 215 2 156 170 11.5
DN125 20 245 2 186 196 15.3
DN150 21 280 2 208 210 22
DN200 21 335 2 265 261 31.5




PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 0PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 1

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 2PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 4

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 5

PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 6





PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 7



PN10 Cast Iron Silent Check Valve DN150 Dn200 QT400 Flange Ends Water Gas Oil 8





































































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
