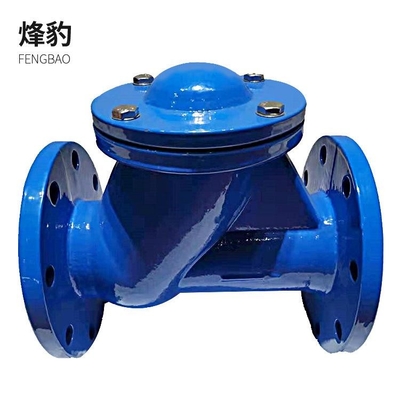

DIN3202-F6 DN300mm Pn10 Ductile Cast Iron Gray Non Return Swing Check Valve With Flange End

product description

1. Swing check valve: The disc of the swing check valve is disc-shaped and rotates around the shaft of the valve seat passage. Because the passage in the valve is streamlined, the flow resistance is smaller than that of the lift check valve. It is suitable for large-diameter occasions with low flow rate and infrequent changes in flow, but it is not suitable for pulsating flow, and its sealing performance is not as good as that of lifting type. The swing check valve is divided into three types: single-lobe type, double-lobe type and multi-lobe type. These three forms are mainly divided according to the valve diameter.
Quiet check valve
Quiet check valve
2. Lifting check valve: a check valve whose disc slides along the vertical centerline of the valve body. Lifting check valves can only be installed on horizontal pipelines. For high-pressure small-diameter check valves, the disc can be made of balls. . The valve body shape of the lift check valve is the same as that of the globe valve (it can be used in common with the globe valve), so its fluid resistance coefficient is larger. Its structure is similar to the globe valve, and the valve body and disc are the same as the globe valve. The upper part of the valve disc and the lower part of the bonnet are machined with guide sleeves. The valve disc guide can be freely raised and lowered in the valve guide guide. When the medium flows downstream, the valve disc is opened by the thrust of the medium. It falls vertically on the valve seat to prevent the reverse flow of the medium. The direction of the medium inlet and outlet channels of the straight-through lift check valve is perpendicular to the direction of the valve seat channel; the vertical lift check valve has the same direction of the medium inlet and outlet channels as the valve seat channel, and its flow resistance is smaller than that of the straight-through type.
3. Disc check valve: a check valve in which the disc rotates around the pin shaft in the valve seat. The disc check valve has a simple structure and can only be installed on horizontal pipelines with poor sealing performance.
4. Pipeline check valve: a valve in which the valve disc slides along the centerline of the valve body. Pipeline check valve is a new valve. It is small in size, light in weight and good in processing technology. It is one of the development directions of check valve. However, the fluid resistance coefficient is slightly larger than that of the swing check valve.
5. Compression check valve: This kind of valve is used as a valve for boiler feed water and steam cut-off. It has the comprehensive function of lift check valve and globe valve or angle valve.
In addition, there are some check valves that are not suitable for pump outlet installation, such as foot valve, spring type, Y type, etc.


Material :
