Rubber PN16 GGG50 Ductile Iron Check Valve

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

Rubber PN16 GGG50 Ductile Iron Check Valve

Rubber PN16 GGG50 Ductile Iron Check Valve
Rubber PN16 GGG50 Ductile Iron Check Valve

Large Image :  Rubber PN16 GGG50 Ductile Iron Check Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

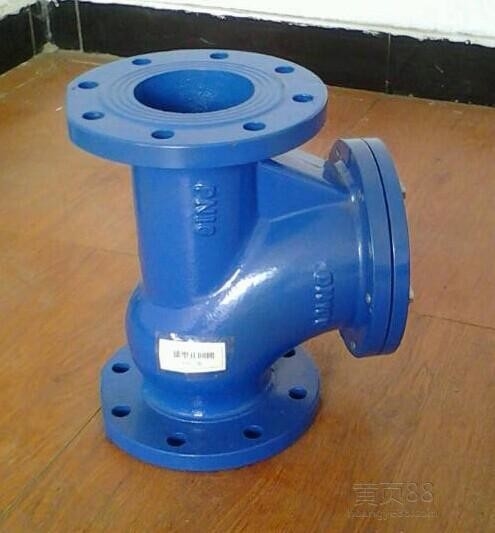

Rubber PN16 GGG50 Ductile Iron Check Valve

Description
Type:: Check Valve Port Size:: DN50-DN300
Product Name:: Metal Check Valves Bonnet Material:: Ductile Iron Ggg50
Media:: Water Pressure:: PN16
Highlight:

Ggg50 Metal Ductile Iron Check Valve

,

PN16 GGG50 Ductile Iron Check Valve

,

DN80 ball check valve

ductile iron PN16 GGG50 water rubber DN80 ball check valve



product description



sliding path roller type check valve uses the rubber covered roller as the disc,when,under the action of the medium,

can roll up and down a long with the integral sliding path inside the valve so as to open or close it.It features by good

tightness ,silient close and no production of water hammer .The body is full water-flow path design,big flow ,small resistance and the water head loss is smaller that of the swing type by 50%.
It is mountable vertically or horizontally and can used for cold-water,hot-water,industrial and living sludge pipe networks,especially suitable for the submersible sludge pump .The medium temperature:0-80℃



Nominal diameter

50-300mm

50-300mm

50-300mm

Nominal pressure

1.0mpa

1.6mpa

2.5mpa

Shell test

1.5mpa

2.4mpa

3.75mpa

Sealing test

1.1mpa

1.76mpa

2.75mpa

Air seal test

0.6mpa

0.6mpa

0.6mpa

Applicable temperature

≤100℃

≤100℃

≤100℃

Applicable medium

water

water

water

Rubber PN16 GGG50 Ductile Iron Check Valve 0Rubber PN16 GGG50 Ductile Iron Check Valve 1Rubber PN16 GGG50 Ductile Iron Check Valve 2

Rubber PN16 GGG50 Ductile Iron Check Valve 3Rubber PN16 GGG50 Ductile Iron Check Valve 4



company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Rubber PN16 GGG50 Ductile Iron Check Valve 5

Rubber PN16 GGG50 Ductile Iron Check Valve 6

Rubber PN16 GGG50 Ductile Iron Check Valve 7





Rubber PN16 GGG50 Ductile Iron Check Valve 8



Rubber PN16 GGG50 Ductile Iron Check Valve 9

Q1. Can I have a sample order for valve? A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable.
Q2. Do you have any MOQ limit for valve order? A: Low MOQ, 1pc for sample checking is available
Q3. How do you ship the goods and how long does it take to arrive? A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.
Q4. How to proceed an order for valve? A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production.
Q5: Are you products standard? A: Our model is standard, if you have specific demand, pls tell us.
Q6: Do you have interest to do our own design items? A: Absolutely! We have big interest.
