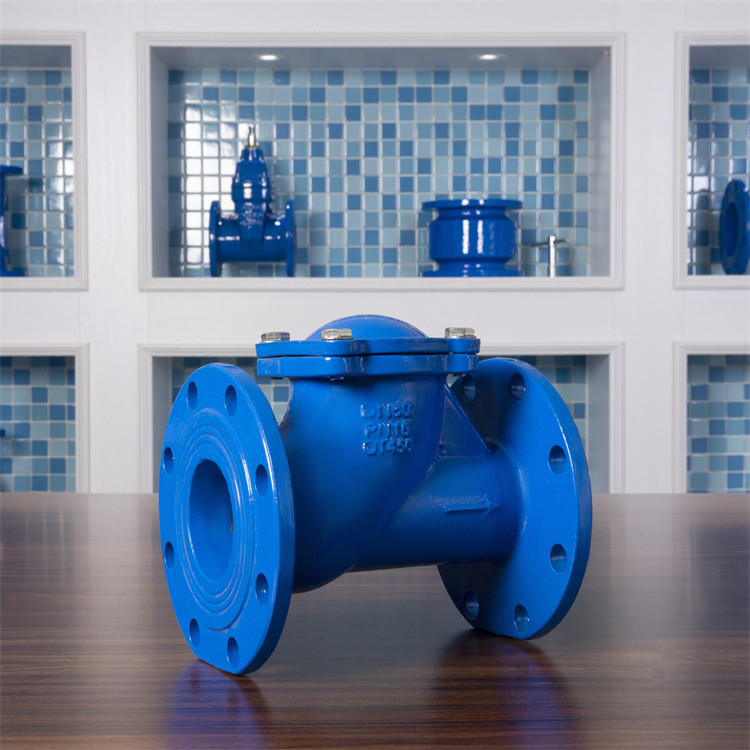

DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment

DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment
DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment

Large Image :  DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: Ball Check Valve
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment

Description
Type: Cast Iron GGG50 Check Valve Port Size: DN50-DN300
Material: Casting Iron Power: Hydraulic
Application: Water Treatment Media: Water
Structure: Flanged Ball Check Valve Filter Aperture: 0.8~3MM
Highlight:

DIN cast iron ball check valve

,

PN16 cast iron ball check valve

,

DN100 ductile iron ball check valve

DIN Ductile Iron PN10 PN16 DN100 Ball Check Valve Flanged

product description

ball check valves are self-cleaning and with full bore. The ball rotates during operation eliminating the risk of impurities getting stuck on the ball. The full and smooth bore ensures full flow with low pressure loss and eliminates the risk of deposits at the bottom. ball check valves are available with flanges and internal threads.

They are delivered with NBR lined ball as standard and optionally with ball of polyurethane available in different weights.
Ball check valve with flanges for wastewater treatment and neutral liquids to max. 70° C
Designed according to EN 12050-4
Face-to-face dimension according to EN 558 Table 2 Basic Series 48
Standard flange drilling to EN1092-2 (ISO 7005-2), PN 10/16
Hydraulic test according to EN12050-4
Self-cleaning construction, where the ball rotates during operation eliminating the risk of impurities getting stuck on the
ball.

· Full bore ensures low pressure loss and minimum back pressure.
· Smooth bore eliminates the risk of deposits at the bottom.
· NBR lined ball of aluminium in DN 50-100 and 500 and of cast iron in DN 125-400. The rubber hardness is optimised to
prevent the ball from getting stuck in the seat. In DN 600 the ball is of aluminium with PUR liner.
· The ball is optionally available in polyurethane suitable for abrasive media and if different ball weights are necessary to
prevent vibration and water hammer.
· Compact design and low weight.


Technical Parameter:


Nominal diameter

50-300mm

50-300mm

50-300mm

Nominal pressure

1.0mpa

1.6mpa

2.5mpa

Shell test

1.5mpa

2.4mpa

3.75mpa

Sealing test

1.1mpa

1.76mpa

2.75mpa

Air seal test

0.6mpa

0.6mpa

0.6mpa

Applicable temperature

≤100℃

≤100℃

≤100℃

Applicable medium

water

water

water



DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 0DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 1



DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 2DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.

The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.

The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 4

DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 5

DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 6





DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 7



DIN Ductile Cast Iron Ball Check Valve Flanged PN16 DN100 Water Treatment 8
































































































































































Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and factory, and not a trading company.
Q: Do you have an agent or representative abroad?
A: We don't have an agent abroad,
please contact us to purchase valves from Fengbao Valve Co., Ltd directly.
Q: What's your product range?
A: We can produce a Gate valve, Check valve, Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity, generally 30-40 days.
 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
