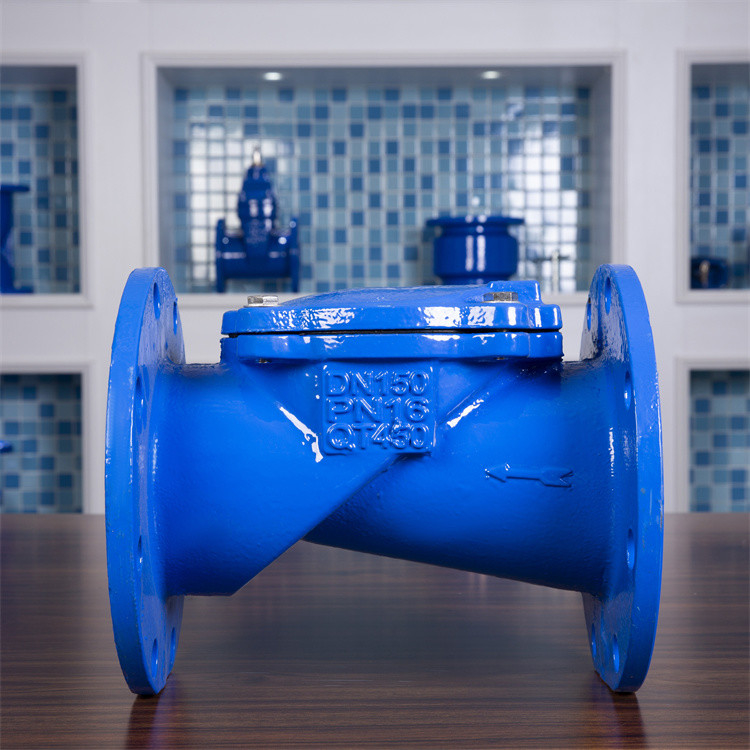

Product Details:
|
Type:: | Check Valve, Swing Check Valve | Connection: | Flange Ends |
---|---|---|---|
Temperature: | 0-180℃ | Pressure: | PN10/16 |
Material: | Ductile Iron QT450-10 | Media: | Water, Water Gas Oil Etc |
Structure: | Swing | Customize: | Acceptable |
Specification: | DN150 | ||
Highlight: | PN10 Rubber Seat Check Valve,GGG50 Rubber Seat Check Valve,DN50 water swing check valve |
1. The rubber flap in the valve is made of steel plate, steel rod and reinforced nylon cloth as the backing, and the outer layer is covered with rubber. The valve flap’s switching life can reach 1 million times. H44X (SFCV) series rubber flap check valve adopts full flow area design, which has the characteristics of small head loss, not easy to accumulate debris, and easy maintenance.
2. The rubber flap check valve is mainly suitable for the water supply and drainage system installed horizontally, and can be installed at the water outlet of the pump to prevent the pump from being damaged by backflow and water hammer. H44X (SFCV) series rubber flap check valve can also be installed on the bypass pipe of the water inlet and outlet pipes of the reservoir to prevent the backflow of pool water into the water supply system. The check valve is generally suitable for clean media, and should not be used for media containing solid particles and high viscosity.
According to the characteristics and functions of the rubber flap check valve, although the body of the rubber flap check valve is small, its capacity is still great. From the perspective of working temperature, as long as it does not exceed 80 degrees Celsius, the rubber flap check valve can operate normally. If judged from the working pressure, the rubber flap check valve can definitely hover between 1.0 and 1.6MPA. Therefore, it can be seen that Out, its water pressure capability is not touted. This is the whole function of the rubber flap check valve introduced to you today.
Nominal Diameter | DN50--DN600 |
Pressure level | 0.6Mpa-1.6Mpa |
Applicable medium | water, steam, gas, oil, etc. |
Applicable temperature | 0degrees Celsius - 80 degrees Celsius |
Rubber flap check | flange thickness (mm) | flange outer circle (mm) | waterline height (mm) | waterline diameter (mm) | Height (mm) | Length (mm) | Weight (KG) |
DN50 | 12.5 | 155 | 2 | 102 | 161 | 205 | 6.5 |
DN65 | 12 | 180 | 2 | 123 | 178 | 210 | 7.5 |
DN80 | 14 | 195 | 2 | 134 | 195 | 220 | 9 |
DN100 | 14.5 | 215 | 2 | 157 | 215 | 250 | 12 |
DN125 | 20 | 245 | / | / | / | 280 | 15 |
DN150 | 24 | 280 | / | / | 280 | 325 | 22 |
DN200 | 24 | 335 | / | / | 337 | 400 | 35 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
