Product Details:
|
Type:: | Check Valve, Swing Check Valve | Connection: | Flange Ends |
---|---|---|---|
Temperature: | 0-80℃ | Pressure: | PN10/16 |
Material: | Ductile Iron QT450-10 | Media: | Water, Water Gas Oil Etc |
Structure: | Swing | ||
Highlight: | Rubber single door check valve,GGG40 single door check valve,DN50 flap type non return valve |

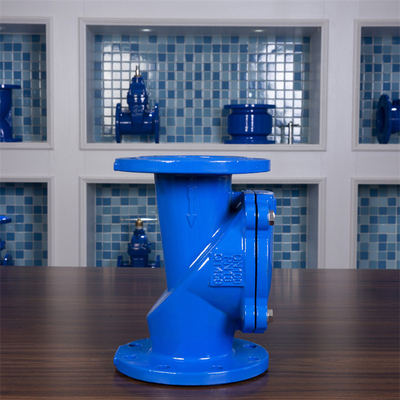

Rubber flap check valve is mainly composed of three main parts: valve body, valve cover and rubber flap. The rubber disc is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber. The valve disc switch life can reach 1 million times. The valve adopts full flow area design, with small head loss, not easy to accumulate chores, easy maintenance and other characteristics. The valve is mainly suitable for water supply and drainage system, can be installed at the outlet, to prevent backflow and water hammer damage to the pump. The valve can also be installed on the bypass pipe of the inlet and outlet pipe of the reservoir to prevent backflow of water into the water supply system.
Rubber flap the rubber flap of the check valve is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is made of rubber. H44X(SFCV) series rubber flap check valves adopt full flow area design, with small head loss, not easy to accumulate debris, easy maintenance and other characteristics. H44X(SFCV) series rubber flap check valve is mainly suitable for horizontal installation of water supply and drainage system, can be installed at the pump outlet, to prevent backflow and water hammer damage to the pump.
Nominal Diameter | DN50--DN600 |
Pressure level | 0.6Mpa-1.6Mpa |
Applicable medium | water, steam, gas, oil, etc. |
Applicable temperature | 0degrees Celsius - 80 degrees Celsius |
Rubber flap check | flange thickness (mm) | flange outer circle (mm) | waterline height (mm) | waterline diameter (mm) | Height (mm) | Length (mm) | Weight (KG) |
DN50 | 12.5 | 155 | 2 | 102 | 161 | 205 | 6.5 |
DN65 | 12 | 180 | 2 | 123 | 178 | 210 | 7.5 |
DN80 | 14 | 195 | 2 | 134 | 195 | 220 | 9 |
DN100 | 14.5 | 215 | 2 | 157 | 215 | 250 | 12 |
DN125 | 20 | 245 | / | / | / | 280 | 15 |
DN150 | 24 | 280 | / | / | 280 | 325 | 22 |
DN200 | 24 | 335 | / | / | 337 | 400 | 35 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q : How long is your delivery time?
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
