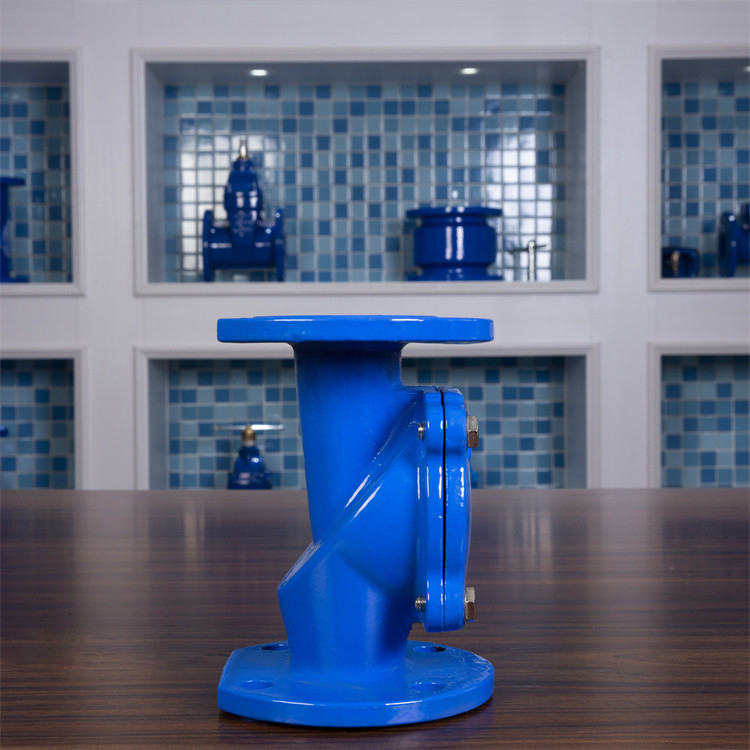

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450
H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450

Large Image :  H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: H44X
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 10000 pcs/ month

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450

Description
Type:: Check Valve, Swing Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN10/16
Material: Ductile Iron QT450-10 Media: Water, Water Gas Oil Etc
Structure: Swing Customize: Acceptable
Highlight:

H44X rubber flapper swing check valve

,

DN200 rubber flapper swing check valve

,

SFCV water swing check valve

DN200 Rubber Flap Swing Check Valve German Stand Ductile Iron GGG50 PN10/16 H44X(SFCV)For Water Gas Oil



product description

H44X(SFCV) series rubber flap check valve is mainly suitable for horizontal installation of water supply and drainage system, can be installed at the pump outlet, to prevent backflow and water hammer damage to the pump. The rubber disc in the valve is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is made of rubber. The valve disc switch life can reach 1 million times. H44X(SFCV) series rubber flap check valves adopt full flow area design, with small head loss, not easy to accumulate debris, easy maintenance and other characteristics





Nominal Diameter DN50--DN600
Pressure level 0.6Mpa-1.6Mpa
Applicable medium water, steam, gas, oil, etc.
Applicable temperature 0degrees Celsius - 80 degrees Celsius



Rubber flap check flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Height (mm) Length (mm) Weight (KG)
DN50 12.5 155 2 102 161 205 6.5
DN65 12 180 2 123 178 210 7.5
DN80 14 195 2 134 195 220 9
DN100 14.5 215 2 157 215 250 12
DN125 20 245 / / / 280 15
DN150 24 280 / / 280 325 22
DN200 24 335 / / 337 400 35



H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 0

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 1

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 2H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 4

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 5

H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 6





H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 7



H44X SFCV Rubber Flapper Swing Check Valve Water DN200 Ductile Iron QT450 8





























































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
