Product Details:
|
Type:: | Check Valve, Swing Check Valve | Connection: | Flange Ends |
---|---|---|---|
Temperature: | 0-80℃ | Pressure: | PN10/16 |
Material: | Ductile Iron QT400-15 | Media: | Water, Water Gas Oil Etc |
Highlight: | QT400 soft seat swing check valve,PN10 soft seat swing check valve,Flange wastewater check valve |

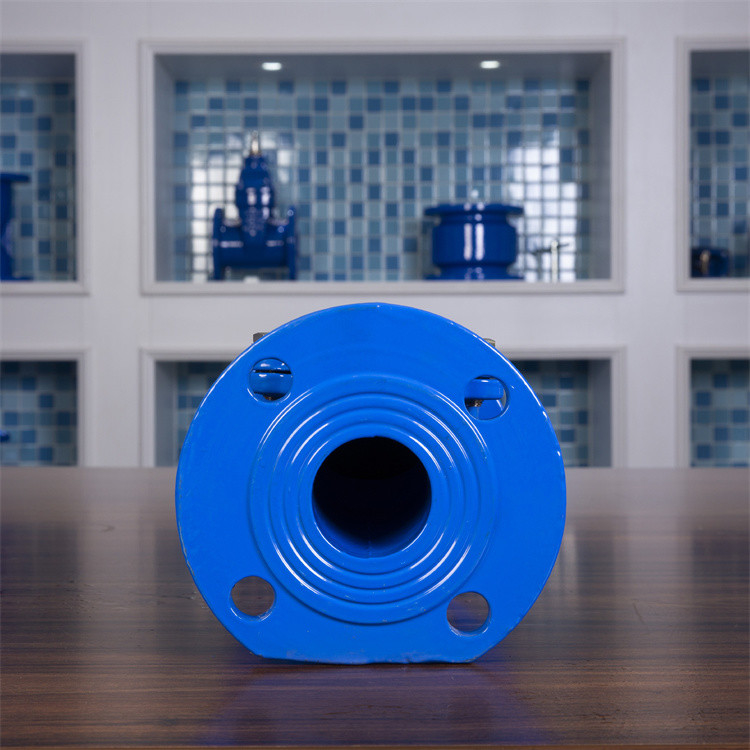

Rubber flap check valve refers to the opening and closing parts of the circular disc and by its own weight and media pressure to produce action to block the media flow back valve. Automatic valve class, also known as check valve, one-way valve, backflow valve or isolation valve. Disc motion is divided into lifting and swing. Lift check valves are similar in construction to globe valves except for the stem that drives the disc. The medium flows in from the inlet end (lower side) and flows out from the outlet end (upper side). Valve is opened when inlet pressure is greater than the sum of disc weight and flow resistance. On the contrary, the valve is closed when the medium flows back. Swing check valves have a disc that is tilted and rotates on its axis and work in a similar way to lift check valves. Check valves are often used as bottom valves in pumping units to prevent the backflow of water.
Nominal Diameter | DN50--DN600 |
Pressure level | 0.6Mpa-1.6Mpa |
Applicable medium | water, steam, gas, oil, etc. |
Applicable temperature | 0degrees Celsius - 80 degrees Celsius |
Rubber flap check | flange thickness (mm) | flange outer circle (mm) | waterline height (mm) | waterline diameter (mm) | Height (mm) | Length (mm) | Weight (KG) |
DN50 | 12.5 | 155 | 2 | 102 | 161 | 205 | 6.5 |
DN65 | 12 | 180 | 2 | 123 | 178 | 210 | 7.5 |
DN80 | 14 | 195 | 2 | 134 | 195 | 220 | 9 |
DN100 | 14.5 | 215 | 2 | 157 | 215 | 250 | 12 |
DN125 | 20 | 245 | / | / | / | 280 | 15 |
DN150 | 24 | 280 | / | / | 280 | 325 | 22 |
DN200 | 24 | 335 | / | / | 337 | 400 | 35 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
