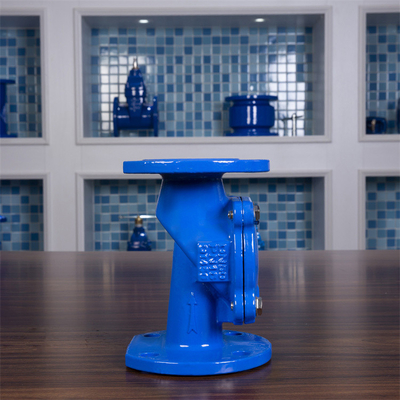

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap
QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap

Large Image :  QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: QT400
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap

Description
Type:: Check Valve, Swing Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN16
Material: QT400-18 Media: Water, Water Gas Oil Etc
Highlight:

QT400 Rubber Seat Check Valve

,

Disc Swing Rubber Seat Check Valve

,

PN16 non return valve rubber flap

QT400-18 PN16 Flange Soft Seat Resilient Seated Flapper Rubber Disc Swing Type Check Valve



product description

Rubber flap check valve is mainly composed of three main parts: valve body, valve cover and rubber flap. The rubber disc is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber. The valve disc switch life can reach 1 million times. The valve adopts full flow area design, with small head loss, not easy to accumulate chores, easy maintenance and other characteristics. The valve is mainly suitable for water supply and drainage system, can be installed at the outlet, to prevent backflow and water hammer damage to the pump. The valve can also be installed on the bypass pipe of the inlet and outlet pipe of the reservoir to prevent backflow of water into the water supply system.



Nominal Diameter DN50--DN600
Pressure level 0.6Mpa-1.6Mpa
Applicable medium water, steam, gas, oil, etc.
Applicable temperature 0degrees Celsius - 80 degrees Celsius



Rubber flap check flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Height (mm) Length (mm) Weight (KG)
DN50 12.5 155 2 102 161 205 6.5
DN65 12 180 2 123 178 210 7.5
DN80 14 195 2 134 195 220 9
DN100 14.5 215 2 157 215 250 12
DN125 20 245 / / / 280 15
DN150 24 280 / / 280 325 22
DN200 24 335 / / 337 400 35





QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 0QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 1

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 2QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 4

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 5

QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 6





QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 7



QT400 Rubber Seat Check Valve Disc Swing PN16 Non Return Valve Rubber Flap 8





























































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
