Product Details:
|

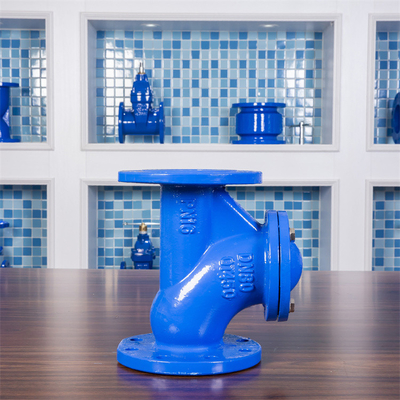

Type: | Flange Ball Check Valve | Port Size: | 2"-12" |
---|---|---|---|
Material: | GGG40/GGG50 | Product Keywords: | Sewage Check Valve |
Power: | Manual | Temperature Of Media: | Medium Temperature |
Structure: | Flanged Ball Check Valve | Working Pressure: | PN10/PN16 |
High Light: | 6 Inch Ductile Iron Check Valve,GGG50 Ductile Iron Check Valve,Flanged non return swing check valve |
H44X rubber flap check valve is mainly composed of three main parts: valve body, valve cover and rubber flap. Among them, the rubber flap is made of steel plate, steel rod and nylon cloth as the backing, and the outer layer is covered with rubber. The valve flap’s switching life can reach 1 million times.
The H44X rubber flap check valve adopts a full flow area design, which has the characteristics of small head loss, not easy to accumulate debris, and easy maintenance. The valve is mainly suitable for water supply and drainage system and can be installed at the water outlet to prevent backflow and water hammer from damaging the pump.
The H44X rubber flap check valve can be installed on the bypass pipe of the water inlet and outlet pipes of the reservoir to prevent the backflow of pool water into the water supply system.
Main technical parameters of H44X rubber flap check valve:
Nominal pressure: 1.0~1.6MPa
Nominal pass through: 50~600mm
Applicable medium: water and weak corrosive fluid
Applicable temperature: 0~80℃
Flange standard: GB/T17241.6GB/T9113
Test standard: GB/T13927AP1598
Main dimensions of H44X rubber flap check valve
model | DN | L | D | D1 | dn | n |
H44X-10 16 | 50 | 203 | 165 | 125 | 17.5 | 4 |
65 | 216 | 185 | 145 | 17.5 | 4 | |
80 | 241 | 200 | 160 | 17.5 | 8 | |
100 | 292 | 220 | 180 | 17.5 | 8 | |
150 | 356 | 285 | 240 | 22 | 8 | |
200 | 495 | 240 | 295 | 22 | 8 | |
250 | 622 | 395 | 350 | 22 | 12 | |
300 | 698 | 445 | 400 | 22 | 12 | |
350 | 787 | 505 | 460 | 22 | 16 | |
400 | 914 | 565 | 515 | 22 | 16 | |
450 | 978 | 615 | 565 | 26 | 20 | |
500 | 978 | 670 | 620 | 26 | 20 | |
600 | 1295 | 780 | 725 | 30 | 20 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and factory, and not a trading company.
Q: Do you have an agent or representative abroad?
A: We don't have an agent abroad,
please contact us to purchase valves from Fengbao Valve Co., Ltd directly.
Q: What's your product range?
A: We can produce a Gate valve, Check valve, Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity, generally 30-40 days.
Q: Which countries do you export to?
A: We export directly to the vast majority of countries in the world.
