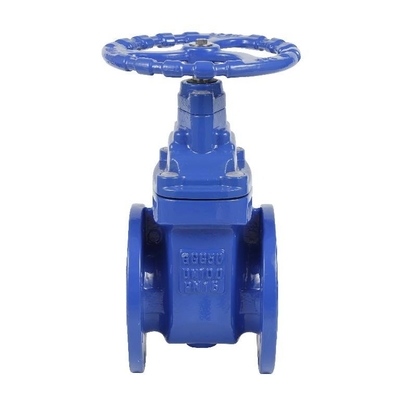

Ductile Iron Resilient Seated Non Rising Stem Soft Seal Flanged Gate Valve PN16 DN100

Ductile Iron Resilient Seated Non Rising Stem Soft Seal Flanged Gate Valve PN16 DN100
Ductile Iron Resilient Seated Non Rising Stem Soft Seal Flanged Gate Valve PN16 DN100

Large Image :  Ductile Iron Resilient Seated Non Rising Stem Soft Seal Flanged Gate Valve PN16 DN100

Product Details:
Place of Origin: hebei, china
Brand Name: Fengbao
Certification: CE & ISO

Ductile Iron Resilient Seated Non Rising Stem Soft Seal Flanged Gate Valve PN16 DN100

Description
Face To Face Dimension: ASME B16.10 Testing Standard: API 598
Material: Ggg40 Pressure: PN10/16
Body Material: Cast Iron, Cast Steel, Stainless Steel Type: Gate Valves
Pressure Rating: Class 150-2500 Structure: Control
Highlight:

Ductile Iron Soft Seal Gate Valve

,

PN16 Soft Seal Gate Valve

,

soft seal gate valve DN100

Product Description:

The F4 soft sealing gate valve is designed to meet API 598 testing standards. This means that it has undergone rigorous testing to ensure that it meets all the necessary performance requirements. In addition, this valve is designed with a rising stem, which provides an easy way to indicate the position of the valve.

The F4 soft sealing gate valve is made of GGG40 material, which is a type of ductile iron. This material is known for its excellent strength, durability, and resistance to corrosion. The valve is also coated with an epoxy powder, which provides additional protection against corrosion and extends the life of the valve.

This soft sealing gate valve has a control structure, which allows it to be used in various applications. It is designed with a wedge-shaped gate that moves up and down to control the flow of fluid through the valve. The valve's soft sealing technology ensures that it provides a tight seal, preventing any leakage of fluid.

The F4 soft sealing gate valve is designed to operate at a pressure of PN10/16. This means that it can handle a maximum pressure of 10 or 16 bar, depending on the model. The valve is available in various sizes, which makes it suitable for a wide range of applications.

In summary, the F4 Soft Sealing Gate Valve is a reliable and durable valve that is designed to meet the needs of various industries. It is made of high-quality materials and is designed to provide a tight seal, ensuring that there is no leakage of fluid. The valve is easy to install and operate, making it an ideal choice for various industrial applications.



Features:

  • Product Name: Soft Seal Gate Valve
  • Body Material:
    • Cast Iron
    • Cast Steel
    • Stainless Steel
  • Structure: Control
  • Type: Gate Valves
  • Pressure: PN10/16
  • Temperature: 0-80℃

Keywords: f4 soft sealing gate valve, soft sealing gate valve, cast iron soft seal flange gate valve



Technical Parameters:

Product Name Cast Iron Soft Seal Flange Gate Valve
Work Pressure PN10/PN16
Connection Form Flange
Sealing Method Soft Seal
Pressure PN10/16
Body Material Cast Iron, Cast Steel, Stainless Steel
Media Water, Steam, Oil
Material Ggg40
Structure Control
Pressure Rating Class 150-2500
Testing Standard API 598


Applications:

The Fengbao Soft Seal Gate Valve is available in a range of pressure ratings, from Class 150 to Class 2500, making it suitable for use in a variety of applications. It is also certified to CE and ISO standards, ensuring that it meets the highest standards of quality and safety.

The valve is available in three different connection types: Flanged, Butt Weld, and Threaded. This makes it easy to install in a wide range of piping systems and ensures that it is compatible with a variety of applications.

The Fengbao Soft Seal Gate Valve is a soft sealing cast iron gate valve that is designed to provide reliable and long-lasting performance. It is also available as a ductile iron BS5163 soft seal gate valve, which provides additional durability and resistance to corrosion.

The valve is designed to meet API 598 testing standards, ensuring that it is capable of withstanding high-pressure and high-temperature applications. This makes it suitable for use in a wide range of industries, including oil and gas, chemical processing, and water treatment.

Overall, the Fengbao Soft Seal Gate Valve is a versatile and reliable valve that can be used in a wide range of applications. Its high-quality construction, wide range of materials and pressure ratings, and compatibility with a variety of connection types make it an excellent choice for any piping system.



Packing and Shipping:

Product Packaging:

  • The Soft Seal Gate Valve will be packed securely in a cardboard box with foam padding to prevent damage during transit.
  • The product will also be wrapped in bubble wrap for additional protection.
  • The package will include instructions for installation and use of the valve.

Shipping:

  • The Soft Seal Gate Valve will be shipped via a reliable courier service.
  • Shipping costs will be calculated based on the destination and weight of the package.
  • Customers will receive a tracking number to monitor the status of their shipment.
  • Orders will be shipped within 3 business days of purchase.


FAQ:

Q: What is the brand name of the gate valve?

A: The brand name of the gate valve is Fengbao.

Q: Where is the gate valve manufactured?

A: The gate valve is manufactured in Hebei, China.

Q: Does the gate valve have any certifications?

A: Yes, the gate valve has both CE and ISO certifications.

Q: What are the available sizes for the Soft Seal Gate Valve?

A: The available sizes for the Soft Seal Gate Valve are 2 inches to 48 inches.

Q: What is the temperature range for the Soft Seal Gate Valve?

A: The Soft Seal Gate Valve can handle temperatures ranging from -29°C to 200°C.
