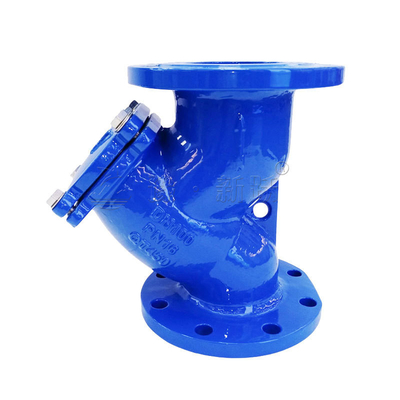

Ductile Iron Y Type Strainer Double Flange For Water

Ductile Iron Y Type Strainer Double Flange For Water
Ductile Iron Y Type Strainer Double Flange For Water

Large Image :  Ductile Iron Y Type Strainer Double Flange For Water

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Ductile Iron Y Type Strainer Double Flange For Water

Description
Type:: Ductile Iron Y Strainer Port Size:: DN50 DN65 DN80
Material:: Ductile Iron (Ggg50) Media:: Water ,sewage,oil,drinking Water
Flange Connection:: EN1092-2 PN10/16, ANSI B16.5 SIZE: DN50~DN600( 2′′ ~ 24′′)
Highlight:

Water Ductile Iron Y Strainer

,

Ductile Iron Y Type Strainer

,

Double Flange Ductile Iron Y Strainer

Ductile Iron Y Type Strainer Double Flange for Water: Efficient Filtration and Flow Management

1. Product Description: The Ductile Iron Y Type Strainer Double Flange for Water is a high-performance filtration device designed to manage water flow and remove impurities in various water systems. Manufactured from ductile iron, these strainers are known for their strength, durability, and resistance to corrosion. The double flange design ensures secure connections and easy installation in water pipelines.

2. Product Parameters:

Parameter Description
Diameter Ranges from DN50 to DN300 (2" to 12"), customizable upon request
Standard EN1092-1, ASME A21.5, or as per customer specification
Pressure Up to PN16 (16 bar) or PN25 (25 bar), depending on the design
Connection Type Double Flanged, compatible with flanged pipeline systems
Usage Temperature Suitable for temperatures up to 100°C (212°F)

3. Product Applications:

  • Water Treatment Plants: Used for filtering out debris and sediments from water sources.
  • Irrigation Systems: Protects sprinkler heads and other irrigation equipment from clogging.
  • Building Services: Installed in commercial and residential buildings for water supply protection.
  • Industrial Water Systems: Employed in cooling towers and other industrial water management systems.

4. Product Advantages:

  • High Filtration Efficiency: Effectively removes particles and prevents system blockages.
  • Durable Material: Ductile iron construction ensures a long service life with minimal maintenance.
  • Corrosion Resistance: Suitable for use in corrosive environments common in water systems.
  • Easy Installation: Double flanged design allows for straightforward installation and removal.
y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307







y-type filter(reduced diameter) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter weight lenght
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



Ductile Iron Y Type Strainer Double Flange For Water 0Ductile Iron Y Type Strainer Double Flange For Water 1Ductile Iron Y Type Strainer Double Flange For Water 2

Ductile Iron Y Type Strainer Double Flange For Water 3Ductile Iron Y Type Strainer Double Flange For Water 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Ductile Iron Y Type Strainer Double Flange For Water 5

Ductile Iron Y Type Strainer Double Flange For Water 6

Ductile Iron Y Type Strainer Double Flange For Water 7





Ductile Iron Y Type Strainer Double Flange For Water 8



Ductile Iron Y Type Strainer Double Flange For Water 9





























































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
