Product Details:
|
Type:: | Ductile Iron Y Strainer | Port Size:: | DN200 |
---|---|---|---|
Material:: | Gggg40 | Media:: | Gas,Water And Steam |
Work Temperature: | -5°c ~ 85°c | Name: | Y Strainer |
Customized Support:: | OEM | ||
Highlight: | Cast Ductile Iron Y Strainer,Stainless Ductile Iron Y Strainer,DN200 Basket y type water filter |
The structure of the Y-type filter has low resistance and convenient sewage discharge.
The Y-type filter is mainly composed of a connecting pipe, a main pipe, a filter screen, a flange, a flange cover and a fastener. When the liquid enters the filter basket through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter basket and is discharged from the filter outlet.
The reason why the filter screen is made into the shape of a cylindrical filter basket is to increase its strength, which is stronger than a single-layer screen, and the flange cover at the lower end of the y-shaped interface can be unscrewed to periodically remove the particles deposited in the filter basket.
The Y-type filter has the characteristics of advanced structure, small resistance and convenient sewage discharge. The suitable medium of Y-type filter can be water, oil and gas. Generally, the water network is 18-30 mesh, the ventilation network is 10-100 mesh, and the oil-passing network is 100-480 mesh. Basket filter is mainly composed of connecting pipe, main pipe, filter blue, flange, flange cover and fasteners. When the liquid enters the filter blue through the main pipe, the solid impurity particles are blocked in the filter blue, and the clean fluid passes through the filter blue and is discharged from the filter outlet.
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |

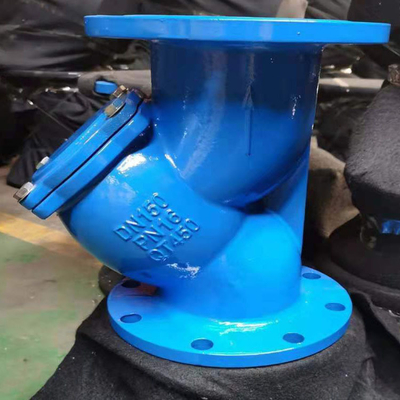

Ductile Iron Y Strainer
Made of Ductile Iron, these strainers provide excellent strength and durability.
Install them prior to valves, pumps, and nozzles to protect sensitive equipment from damage caused by debris.
They are designed for medium-pressure applications. Strainers are for use in noncorrosive environments. They have a threaded drain with a plug that provides access to the screen without disconnecting your line.
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.
A : Yes, we could offer the sample for free charge but do not pay the cost of freight.
A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
