Product Details:
|
Type:: | Ductile Iron Y Strainer | Port Size:: | DN100 |
---|---|---|---|
Material:: | Gggg50 | Media:: | Ewage,oil,drinking Water |
Screen:: | SS Wire Screen/SS Perforated Mesh | End Connection:: | Falnge |
Highlight: | DIN cast iron y type strainer,Ductile cast iron y type strainer,Flanged pn16 y type strainer |

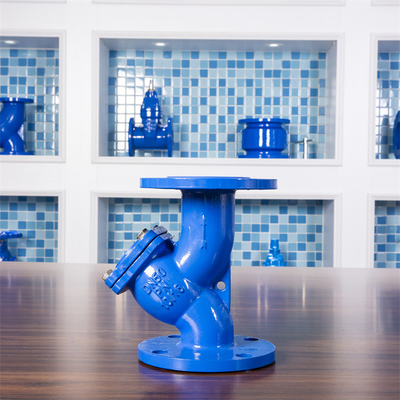

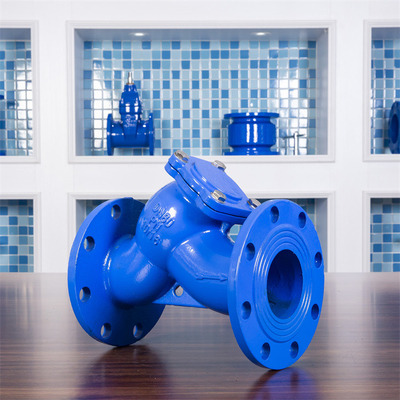

Ductile iron Y-type filter function and application:
This product is designed to remove foreign matter from pipelines and provide protection for pumps, meters, valves and other similar mechanical equipment, it is called a strainer. "Y" filters are named after their shape and are often used for course filtering. But with a large filtering area, fine mesh can be used also. This filter improves clearance in the medium term and prolongs valve life, protecting expensive pumps, meters and other equipment. It is suitable for water, air, gas, oil, steam and other fluids.
What is the difference between a ductile iron Y-strainer and a strainer? It includes a single-use media for removing particles of specified micron size.
Simply put, a screen is also a filter, but it uses a perforated plate or screen to remove larger particles from the process stream. The main advantage of a filter is that it is reusable.
This product is mainly set on various water supply and drainage or steam and gas pipelines and used to protect other piping or valve from getting damaged by the fragments and impurities in the system.
Features
y-type filter(full bore) | flange thickness | flange outer circle | structure lenght | waterline height | waterline diameter | Height | screen diameter | filter lenght | filter aperture | center distance of filter |
DN50 | 17 | 160 | 125 | 1.5 | 100 | 185 | 48 | 85 | 2 | 4 |
DN65 | 17 | 180 | 145 | 1.5 | 118 | 210 | 60 | 95 | 2 | 4 |
DN80 | 17 | 190 | 160 | 2 | 132 | 242 | 68 | 116 | 2 | 4 |
DN100 | 17 | 215 | 180 | 2 | 154 | 265 | 82 | 137 | 2 | 4 |
DN125 | 240 | 210 | 2 | 172 | ||||||
DN150 | 280 | 240 | 2 | 217 | 113 | 165 | 3 | 5 | ||
DN200 | 20 | 335 | 295 | 2 | 262 | |||||
DN250 | 24 | 2.5 | 307 |
y-type filter(reduced diameter) | flange thickness | flange outer circle | structure length | waterline height | waterline diameter | Height | screen diameter | filter length | filter aperture | center distance of filter | weight | length |
DN50 | 12.5 | 156 | 201 | 2 | 102 | 185 | 48 | 85 | 2 | 4 | 4.5 | 205 |
DN65 | 12 | 175 | 217 | 2 | 123 | 210 | 60 | 95 | 2 | 4 | 6.5 | 220 |
DN80 | 14 | 190 | 247 | 2 | 134 | 242 | 68 | 116 | 2 | 4 | 8 | 250 |
DN100 | 14.5 | 209 | 293.5 | 2 | 157 | 265 | 82 | 137 | 2 | 4 | 10.5 | 298 |
DN125 | 20 | 240 | 14 | 315 | ||||||||
DN150 | 24 | 280 | 335 | 113 | 165 | 2 | 5 | 19 | 350 | |||
DN200 | 24 | 335 | 405 | 34 | 410 | |||||||
DN250 | 24 | 405 | 460 | 58 | 525 | |||||||
DN300 | 24 | 460 | 520 | 80 | 605 | |||||||
DN350 | 25 | 520 | 580 | 98 | 627 | |||||||
DN400 | 27 | 580 | 126 | 630 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and factory, and not a trading company.
Q: Do you have an agent or representative abroad?
A: We don't have an agent abroad,
please contact us to purchase valves from Fengbao Valve Co., Ltd directly.
Q: What's your product range?
A: We can produce a Gate valve, Check valve, Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity, generally 30-40 days.
Q: Which countries do you export to?
A: We export directly to the vast majority of countries in the world.
