Product Details:
|
Type: | Gate Valves | Temperature: | Ordinary Temperature |
---|---|---|---|
Work Pressure: | PN10 | Surface: | Powder Coating |
Customized Support: | OEM, ODM | Color: | Multiple Colour |
Highlight: | Dn50 Flange Gate Valve,cast steel gate valve PN10,Flange Gate Valve multiple colour |

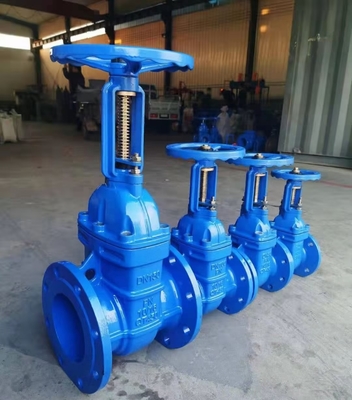

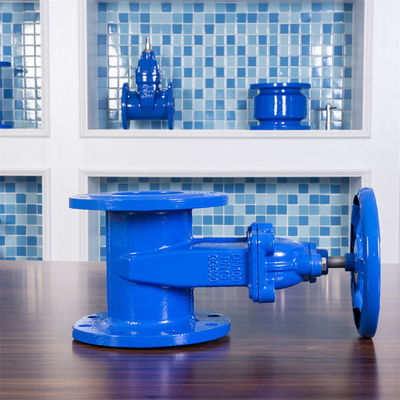

QT400 Cast Iron Cast Steel PN10 Dn50 Flange Gate Valve For Water
product description:
Structural performance of gate valve
The gate valve is used for full opening or full closing on the pipeline, and is generally not used to adjust the flow rate (if it is used to adjust the flow rate, the sealing surface of the gate plate and the valve seat is easy to be eroded and damaged and the noise is large). The shell adopts different materials, which can be applied to different temperatures, different pressures, and media of different properties. It has a wide range of applications, but gate valves are generally not suitable for conveying thick media such as mud.
advantage:
1. Small fluid resistance and small pressure loss.
2. The torque required for valve opening and closing is small.
3. The medium in the valve can flow in both directions.
4. The structure is simple, and the manufacturing process is relatively good.
5. The sealing performance is better than that of the globe valve.
Part name | Meterial |
Body | Gray iron, ductile iron, cast steel |
Gate | Ductile iron+EPDM or NBR |
Allen bolits | Carbonization process |
Seals | NBR,EPDM |
Bonnect | Gray iron,ductile iron,cast steel |
Stem | Stainless steel |
O-ring seals | NBR |
Thrust bearings | Tin bronze |
Bolt | Carbon steel,ally steel |
Gland | Ductile iron,cast steel |
Dust Cover | NBR |
Hand wheel | Malleable iron |
Product Name | Material |
Valve Body | Ductile iron, plastic spraying |
Wedge Disc | Ductile iron, overall EPDM coating |
Stem | 2Gr13, 45#chrome-plated steel, SS304, SS316, SS410 Stem |
Handwheel | Cast iron or iron sheet |
Wedge Nut | Steel or Brass |
Founded in 2012, Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!
FAQ
1. Q: Are you a manufacturer or trading company ?
A: we are valve manufacturer and factory,and not trading company.
2. Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes. The lead time depends on your quantity,generally 30-35 days.
3. Q: Which countries do you export to ?
A: We export directly to vast majority of countries in the world.
4. Q: What certificates will you provide ?
A: We can provide CE/ ISO / WRAS/SGS and all the customers need.
5. After-sales service
12 monthes year warranty for all kinds of products.As an experienced manufacturer, you can rest assured of the quality and sales service.
