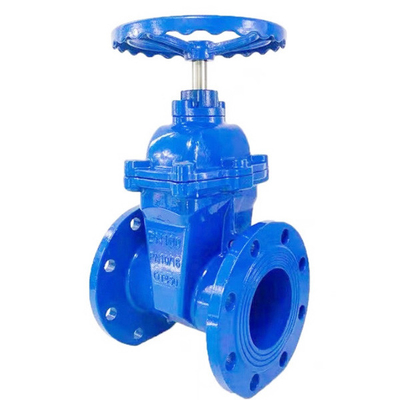

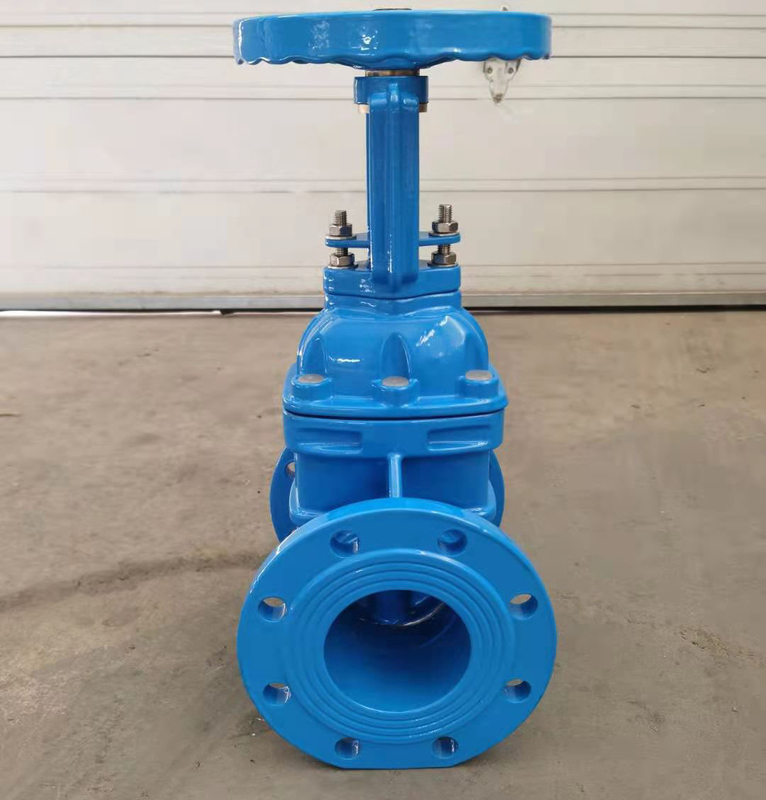

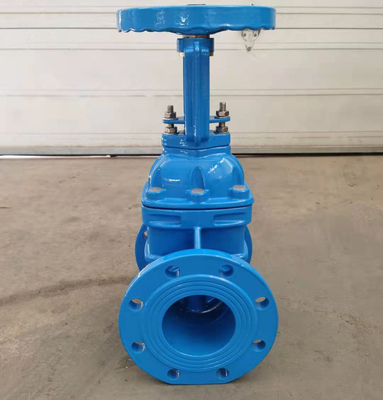

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature
Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature

Large Image :  Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature

Product Details:
Place of Origin: China
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25
Payment Terms: T/T
Supply Ability: 100 tons/ month

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature

Description
Media: Water Temperature: Ordinary Temperature
Work Pressure: PN10/PN16 Surface: Powder Coating/Acid Pickling
Body: Ductile Iron Color: Multiple Colour
Highlight:

Dn150 sluice gate valve

,

Qt450 sluice gate valve

,

Ductile Iron Gate Valve Ordinary Temperature

Product Available Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve



product description:



Gate valves can be classified according to the structural form and can be divided into clear stem gate valves and dark stem gate valves. And it can be divided into wedge gate and parallel gate valve. The structure of parallel gate is mostly rigid gate, wedge type contains elastic gate, and gate valve can also be divided into single gate and double gate.

Advantages of gate valve structural features:

1. Small fluid resistance. The medium channel inside the gate valve body is straight through. As mentioned above, the gate valve can only be fully opened or fully closed. When the gate valve is fully open, the flow resistance of the medium passing through the gate valve body channel is close to 0, and the flow resistance very small.

2. The switch operation is labor-saving. Because when the gate plate of the gate valve is opened and closed, the movement direction is up and down, which is perpendicular to the movement direction of the medium in the valve body channel. Compared with the globe valve, the opening and closing operation of the gate valve is more labor-saving.







Part name Meterial
Body Gray iron, ductile iron, cast steel
Gate Ductile iron+EPDM or NBR
Allen bolits Carbonization process
Seals NBR,EPDM
Bonnect Gray iron,ductile iron,cast steel
Stem Stainless steel
O-ring seals NBR
Thrust bearings Tin bronze
Bolt Carbon steel,ally steel
Gland Ductile iron,cast steel
Dust Cover NBR
Hand wheel Malleable iron
Product Name
Material
Valve Body
Ductile iron, plastic spraying
Wedge Disc
Ductile iron, overall EPDM coating
Stem
2Gr13, 45#chrome-plated steel, SS304, SS316, SS410 Stem
Handwheel
Cast iron or iron sheet
Wedge Nut
Steel or Brass

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 0Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 1Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 2

Company Profile:

Founded in 2012, Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 3

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 4

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 5

Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 6Qt450 Dn150 Pn16 Rising Stem Ductile Iron Sluice Gate Valve Ordinary Temperature 7

FAQ

1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory,and not trading company.

2. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,generally 30-35 days.

3. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

4. Q: What certificates will you provide ?

A: We can provide CE/ ISO / WRAS/SGS and all the customers need.

5. After-sales service
12 monthes year warranty for all kinds of products.As an experienced manufacturer, you can rest assured of the quality and sales service.
