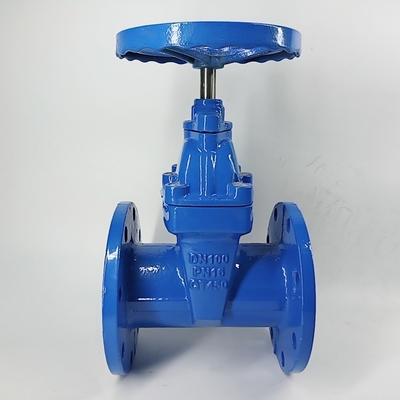

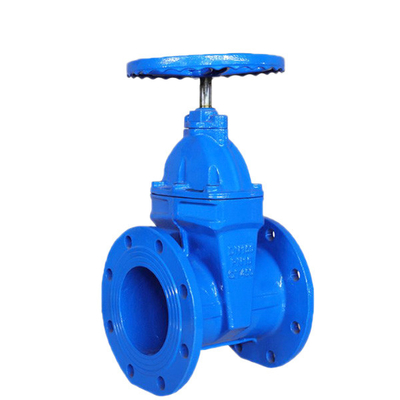

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge
Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge

Large Image :  Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge

Product Details:
Place of Origin: China
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25
Payment Terms: T/T
Supply Ability: 100 tons/ month

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge

Description
Media: Water Connection Form: Flange
Work Pressure: PN10/PN16 Usage: Safety, Flow Control
Surface: Powder Coating/Acid Pickling Product Name: Gate Valve
Color: Multiple Colour
Highlight:

Qt450 Cast Iron Gate Valve

,

Qt450 non rising stem gate valve

,

Pn16 Cast Iron Gate Valve

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge



product description:



Advantages of gate valve structural features:

1. Small fluid resistance. The medium channel inside the gate valve body is straight through. As mentioned above, the gate valve can only be fully opened or fully closed. When the gate valve is fully open, the flow resistance of the medium passing through the gate valve body channel is close to 0, and the flow resistance very small.

2. The switch operation is labor-saving. Because when the gate plate of the gate valve is opened and closed, the movement direction is up and down, which is perpendicular to the movement direction of the medium in the valve body channel. Compared with the globe valve, the opening and closing operation of the gate valve is more labor-saving.

3. Two-way circulation. The gate valve is a two-way valve, which means that the flow direction of the medium in the valve body channel is not restricted, and the medium can flow through both sides of the gate valve at will without affecting the normal opening and closing of the gate valve. Therefore, gate valves are suitable for installation in pipelines where the flow direction of the medium may change.





Part name Meterial
Body Gray iron, ductile iron, cast steel
Gate Ductile iron+EPDM or NBR
Allen bolits Carbonization process
Seals NBR,EPDM
Bonnect Gray iron,ductile iron,cast steel
Stem Stainless steel
O-ring seals NBR
Thrust bearings Tin bronze
Bolt Carbon steel,ally steel
Gland Ductile iron,cast steel
Dust Cover NBR
Hand wheel Malleable iron
Product Name
Material
Valve Body
Ductile iron, plastic spraying
Wedge Disc
Ductile iron, overall EPDM coating
Stem
2Gr13, 45#chrome-plated steel, SS304, SS316, SS410 Stem
Handwheel
Cast iron or iron sheet
Wedge Nut
Steel or Brass

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 0Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 1Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 2

Company Profile:

Founded in 2012, Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 3

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 4

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 5

Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 6Grey Iron Non Rising Stem Qt450 Pn16 Cast Iron Gate Valve W/ Rubber Wedge 7

FAQ

1. Q: Are you a manufacturer or trading company ?

A: we are valve manufacturer and factory,and not trading company.

2. Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes. The lead time depends on your quantity,generally 30-35 days.

3. Q: Which countries do you export to ?

A: We export directly to vast majority of countries in the world.

4. Q: What certificates will you provide ?

A: We can provide CE/ ISO / WRAS/SGS and all the customers need.

5. After-sales service
12 monthes year warranty for all kinds of products.As an experienced manufacturer, you can rest assured of the quality and sales service.
