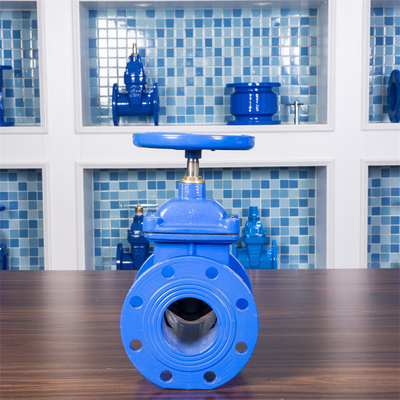

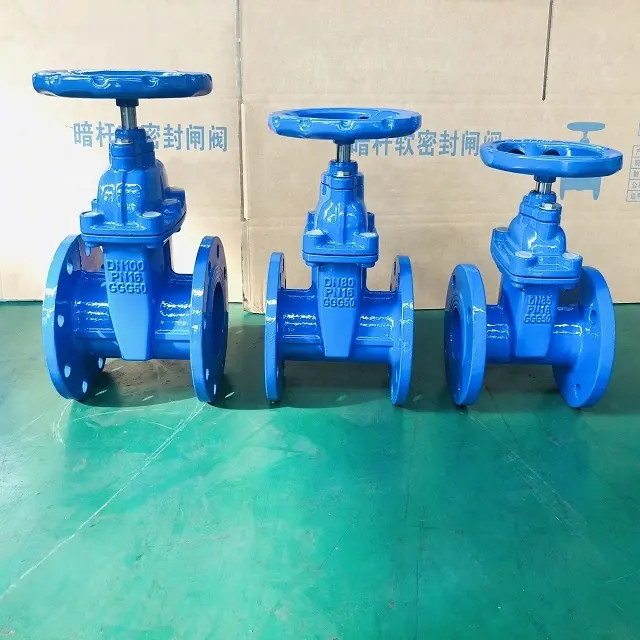

Product Details:
|
Pressure:: | PN16 | Material:: | Ductile Iron |
---|---|---|---|
Connection:: | Flange Ends | Temperature Of Media:: | Low Temperature, Medium Temperature, |
Type:: | Gate Valves | Size:: | 4inch |
Highlight: | 4inch Rubber Seat Gate Valve,100mm Rubber Seat Gate Valve,4inch Cast Iron Gate Valve |
product description
Gate valves are used to shut off the flow of liquids, not to regulate flow. When fully open, a typical gate valve has no obstructions in the flow path, resulting in very low resistance to flow. As the gate is moved, the dimensions of the open flow path typically change in a non-linear fashion. This means that flow does not vary uniformly with stem travel. Depending on the construction, a partially open gate will vibrate due to fluid flow. Gate valves are primarily used in larger pipe diameters (pipes from 2 to xxx) as they are simpler in construction than other types of large size valves. At high pressure, friction can become a problem. Operating the valve becomes more difficult as the gate is pushed against its guide by the pressure of the medium. Large gate valves are sometimes equipped with a bypass controlled by a smaller valve to allow the pressure to be reduced before operating the gate valve itself. Gate valves without additional seals on the gate or seat are used in applications where slight leakage from the valve is not an issue, such as heating circuits or sewer lines.
Gate valve(light craft) | Flange thickness | Flange outer circle | Waterline height | waterline diameter | height | length | weight |
DN50 | 12 | 160 | 1.5 | 100 | 178 | 5.9 | |
DN65 | 12 | 174 | 1.5 | 118 | 320 | 190 | 7.5 |
DN80 | 12.5 | 191 | 1.5 | 132 | 360 | 203 | 9 |
DN100 | 11.7 | 209 | 1.5 | 154 | 395 | 229 | 11.3 |
DN150 | 15 | 275 | 2 | 213 | 525 | 267 | 21 |
Size | Non-rising stem: DN50-600 : Ring stem: DN50~600 | |
End flange | EN 1092 | |
Face to face | EN 558-1 | |
Normal pressure | PN1.0/1.6MPa | |
Body | DI | |
Disc | DI+EPDM/NBR | |
Stem | 2Cr13 430 | |
Sealing face | EPDM/NBR | |
Stem Copper Nut | Brass | |
Bonnet | DI | |
Working temperature | -15~425 | |
Suitable mediums | Fresh water, sewage, sea water, air, vapor, food, medicine, oils. alkalis, salt etc. |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!
A: We are factory.
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
