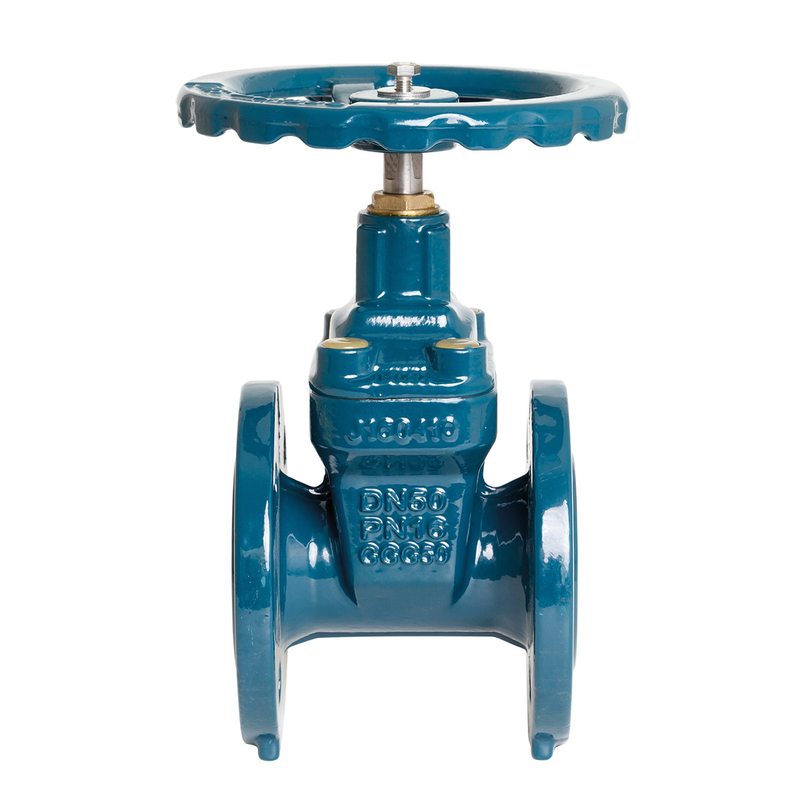

Antiwear Cast Iron DN100 Gate Valve GGG50 Handwheel Water Seal Gate Valve

Antiwear  Cast Iron DN100  Gate Valve GGG50 Handwheel Water Seal Gate Valve
Antiwear  Cast Iron DN100  Gate Valve GGG50 Handwheel Water Seal Gate Valve

Large Image :  Antiwear Cast Iron DN100 Gate Valve GGG50 Handwheel Water Seal Gate Valve

Product Details:
Place of Origin: China
Brand Name: FB valve
Certification: ISO9001
Model Number: DN50/65/100/150/200/250/300/600
Payment & Shipping Terms:
Minimum Order Quantity: 10 tons
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25
Payment Terms: T/T
Supply Ability: 100 tons/ month

Antiwear Cast Iron DN100 Gate Valve GGG50 Handwheel Water Seal Gate Valve

Description
Name: Gate Valve Media: Water, Steam, Oil
Power: -25°-180° Work Pressure: PN10/PN16
Material: GGG50/GGG40/QT450 Warranty: 1 Year
Color: Depend On Size OP: Hand Wheel
Surface: Powder Coating/Acid Pickling/Paint
Highlight:

DN100 Gate Valve GGG50

,

GGG50 Water Seal Gate Valve

,

Antiwear DN100 Gate Valve

DIN PN10 PN16 Ductile Cast Iron GGG50 Hand wheel Resilient Seated Water Seal Gate Valve







product description:





Rubber flap check valve is mainly composed of three main parts: valve body, valve cover and rubber flap. The rubber disc is made of steel plate, steel rod and reinforced nylon cloth as the substrate, and the outer layer is covered with rubber. The valve disc switch life can reach 1 million times. The valve adopts full flow area design, with small head loss, not easy to accumulate chores, easy maintenance and other characteristics. The valve is mainly suitable for water supply and drainage system, can be installed at the outlet, to prevent backflow and water hammer damage to the pump. The valve can also be installed on the bypass pipe of the inlet and outlet pipe of the reservoir to prevent backflow of water into the water supply system.





Soft sealing gate valve, industrial valve, the opening and closing part of soft sealing gate valve is the gate, the movement direction of the gate is perpendicular to the direction of the fluid, the gate valve can only be fully opened and fully closed, and cannot be adjusted or throttled. The gate has two sealing surfaces. The two sealing surfaces of the most commonly used mode gate valve form a wedge shape.





Part name Meterial
Body Gray iron, ductile iron, cast steel
Gate Ductile iron+EPDM or NBR
Allen bolits Carbonization process
Seals NBR,EPDM
Bonnect Gray iron,ductile iron,cast steel
Stem Stainless steel
O-ring seals NBR
Thrust bearings Tin bronze
Bolt Carbon steel,ally steel
Gland Ductile iron,cast steel
Dust Cover NBR
Hand wheel Malleable iron



Antiwear  Cast Iron DN100  Gate Valve GGG50 Handwheel Water Seal Gate Valve 0













Company Profile:

Founded in 2012, Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, in order to achieve the first- class quality, and favored by the majority of customers!
