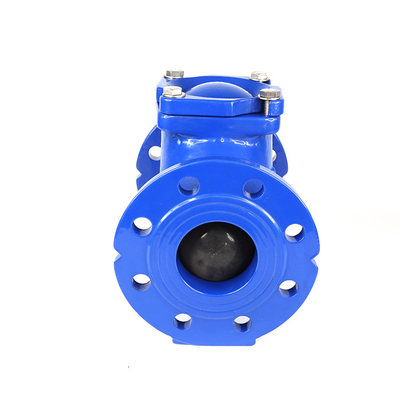

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap
GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap

Large Image :  GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN80
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 10000 pcs/ month

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap

Description
Type:: Ball Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN10/16
Material: Ductile Iron QT450-10 Media: Water, Water Gas Oil Etc
Structure: Control Port Size: DN150
Highlight:

GGG50 Ball Check Valve

,

PN10 PN16 Ball Check Valve

,

QT450 non return valve rubber flap

German Standard PN10 PN16 QT450 GGG50 Cast Iron Type Rubber Non Return Ball Check Valve



product description

Check valve is used for pipeline system media downstream open, upstream closed automatic valve, the main role is to prevent media backflow, pump and drive mechanical reverse, prevent water pump and drive motor suddenly stop running when the water shock wave, reduce the damage to the pipeline system. According to the relative displacement of the closing parts and the seat, check valves can be divided into five categories: lifting, swing, disc, diaphragm and spherical check valves. Most of the above check valves have the following disadvantages: "loud noise" and vibration due to water hammer action when closing; Due to the vibration of the valve plate in the valve "joint parts" shaft and shaft sleeve mechanical friction movement, when the valve plate vibration frequency is too high, the shaft and shaft sleeve will produce mechanical friction movement, valve plate displacement, sealing failure, sometimes cause the valve plate off, so that the system protection failure; The fluid flow pattern in the valve is chaotic, the flow resistance loss is large, and the energy loss is serious. In order to avoid and improve the above shortcomings, the spherical check valve with its good sealing, minimal flow resistance and other performance advantages, has been widely used and promoted, its structure from the original "single ball" check valve gradually improved to "independent multi-channel multi-ball" check valve.



Main Parts and Material:



Product Name
Material
Valve Body Ductile iron, plastic spraying
Applicable temperature ≤100℃
Connection method Flange
material Ductile iron
Wedge Nut Steel or Brass



Nominal diameter 50-300mm 50-300mm 50-300mm
Nominal pressure 1.0mpa 1.6mpa 2.5mpa
Shell test 1.5mpa 2.4mpa 3.75mpa
Sealing test 1.1mpa 1.76mpa 2.75mpa
Air seal test 0.6mpa 0.6mpa 0.6mpa
Applicable temperature ≤100℃ ≤100℃ ≤100℃
Applicable medium water water water

Ball check Valve flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Height (mm) Length (mm) Weight (KG)
DN50 15 160 1.5 100 185 220 7.5
DN65 15 180 1.5 118 198 222 9
DN80 17 195 2 132 225 258 11.5
DN100 18.5 215 2 154 255 283 15.5
DN125 19 245 2 172 285 319 28
DN150 19 280 2 217 340 354 32
DN200 20 335 2 262 400 432 53
DN250 22 405 2.5 307 465 496 83
DN300 25 460 2.5 357 515 552 133

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 0GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 1



GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 2GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 4

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 5

GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 6





GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 7



GGG50 Ball Check Valve PN10 PN16 QT450 Non Return Valve Rubber Flap 8





































































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
