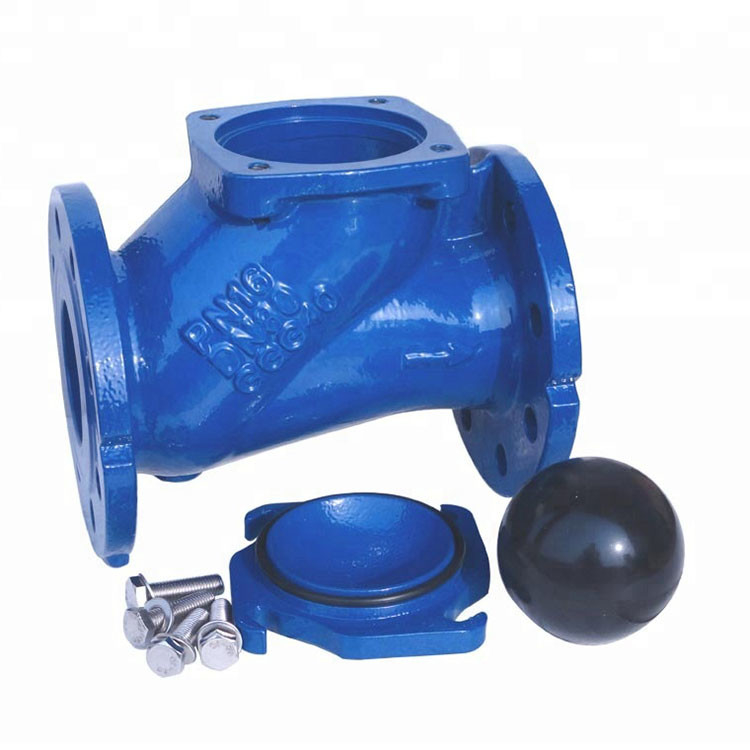

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater
HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater

Large Image :  HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN100
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 10000 pcs/ month

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater

Description
Type:: Ball Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN10/16
Material: Ductile Iron QT450-10 Media: Water, Water Gas Oil Etc
Structure: Control Port Size: DN150
Highlight:

HQ41X F6 rubber seated check valve

,

QT450 rubber seated check valve

,

Pumping wastewater check valve

HQ41X F6 Cast Iron QT450 Ball Check Valves For Industrial Pumping Wastewater Applications



product description

Ball check valve is a multi-ball, multi-channel, multi-cone inverted fluid structure of the check valve, mainly by the front and back valve body, rubber ball, cone body and so on.

Its working principle is: the rubber ball makes short stroke rolling in the ball cover to realize the opening and closing of the valve. When the water pump starts, the water under the action of pressure flusher the rubber ball, so that the rubber ball rolls to the right side, fixed its position by the conical body in the rear valve body, check valve opens; After the pump stops, due to the backwater pressure in the pipeline system, the rubber ball is forced to roll to the left front valve body to achieve the check valve closure. The rubber ball adopts hollow steel ball, with elastic rubber to ensure sealing, and reduce the damage to the pipeline system in the process of valve closing. When the valve is opened, the cone body with holes has a fixed effect on the ball and eliminates the pressure of the contact area between the rubber ball and the cone body, so that the contact is surface contact, and reduces the hydraulic loss caused by the trembling of the rubber ball in the valve body



Main Parts and Material:



Product Name
Material
Valve Body Ductile iron, plastic spraying
Applicable temperature ≤100℃
Connection method Flange
material Ductile iron
Wedge Nut Steel or Brass



Nominal diameter 50-300mm 50-300mm 50-300mm
Nominal pressure 1.0mpa 1.6mpa 2.5mpa
Shell test 1.5mpa 2.4mpa 3.75mpa
Sealing test 1.1mpa 1.76mpa 2.75mpa
Air seal test 0.6mpa 0.6mpa 0.6mpa
Applicable temperature ≤100℃ ≤100℃ ≤100℃
Applicable medium water water water

Ball check Valve flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Height (mm) Length (mm) Weight (KG)
DN50 15 160 1.5 100 185 220 7.5
DN65 15 180 1.5 118 198 222 9
DN80 17 195 2 132 225 258 11.5
DN100 18.5 215 2 154 255 283 15.5
DN125 19 245 2 172 285 319 28
DN150 19 280 2 217 340 354 32
DN200 20 335 2 262 400 432 53
DN250 22 405 2.5 307 465 496 83
DN300 25 460 2.5 357 515 552 133

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 0HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 1

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 2HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 4

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 5

HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 6





HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 7



HQ41X F6 Rubber Seated Check Valve QT450 Industrial Pumping Wastewater 8





































































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
