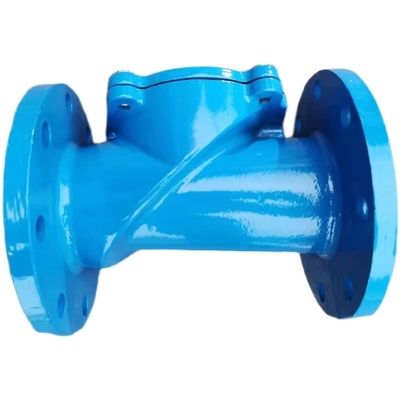

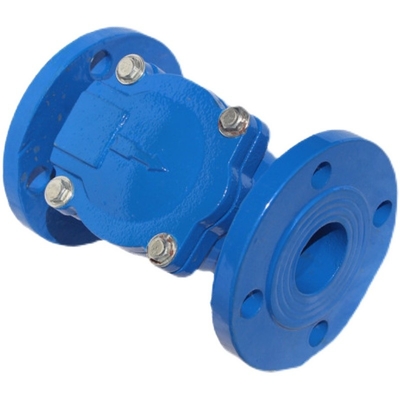

Product Details:
|
| Application: | Industrial Usage, Water Industrial Usage | Product Name:: | Ductile Iron Swing Check Valve |
|---|---|---|---|
| Specification: | DN50-300 | Port Size: | DN40-DN400 |
| Pressure: | PN10/PN16 | Model Number: | H44X-16Q |
| Connection Form: | Flange | Flange Standard: | BS En1074-3/BS En12334 Awwa C508. |
| Highlight: | Flanged non return swing check valve,F6 non return swing check valve,PN10 swing check valve cast iron |
||
Rubber flap swing check valve installation
(1) Compare the rated parameters required by the equipment with the rated parameters marked on the product to ensure that the required requirements are met;
(2) The installation personnel must be trained and experienced to ensure the smooth completion of the installation work;
(3) After the installation is completed, a thorough inspection is required to ensure that the installation is correct;
(4) In order to ensure that there are no accidents in the installation work, the piping system should be thoroughly cleaned before the product is installed (chemical reagents are used if necessary) to ensure that the piping system is clean, free of rust and dirt, and it needs to be removed before flushing. go to all filtration devices to make sure the pipes are clear;
(5) It is recommended to install a temporary pipeline at the equipment installation pipeline during the initial cleaning of the system, and then install the equipment on the pipeline after the flushing work is completed;
(6) Use standard flanges and fasteners to connect;
(7) When installing, please note that the flow direction of the medium must be consistent with the arrow direction of the valve body;
Application:
Reduced DIN Ball Valve
Product name :Reduced Port DIN Ball Valve
Product specification :2"~8"
End flange size :EN 1092-2/ISO7005-2
Nominal pressure :PN16
Stress test :Shell Test 3.1 mpa (by water )
Actuator mounting pad :NO
Main material :Cast Iron
Design and manufacture :EN12516/DIN3357
Major design standards :EN12516/DIN3357
Flange standard :DIN3202/EN558-1
Structural length :14/ F4
Inspection and test standard :EN1266 / ISO5208 /DIN3230
Material :
| Body | Ductile Iron |
| Bonnet | Ductile Iron |
| Gasket | NBR |
| Bolt | Stainless Steel |
| Flap | DI&EPDM |
Related Standard:
| Design Standard: | BS EN1074-3/BS EN 12334 AWWA C508. |
| Face To Face Standard | EN558. S10/S48. ASME B16.10. (DIN3202 F6/BS5153) |
| Flanges Standard | BS EN1092-2. ASME B16.1 AWWA C508 |
| Working Pressure | 16 Bar and 250PSI |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
| Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
| Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
| Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
| Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
| Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
| Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
