Product Details:
|
| Application: | General, Petrochemical Engineering | Product Name:: | H44X-16Q Ductile Iron Check Valve |
|---|---|---|---|
| Body Material: | Nodular Cast Iron | Port Size: | DN50-DN600 |
| Pressure: | PN10/PN16 | Model Number: | H44X-16Q |
| Power: | Waterpower | Modelling: | Feel Comfortable |
| Highlight: | Nodular floating ball check valve,Cast Iron floating ball check valve,Pn10 Pn16 flanged swing check valve |
||

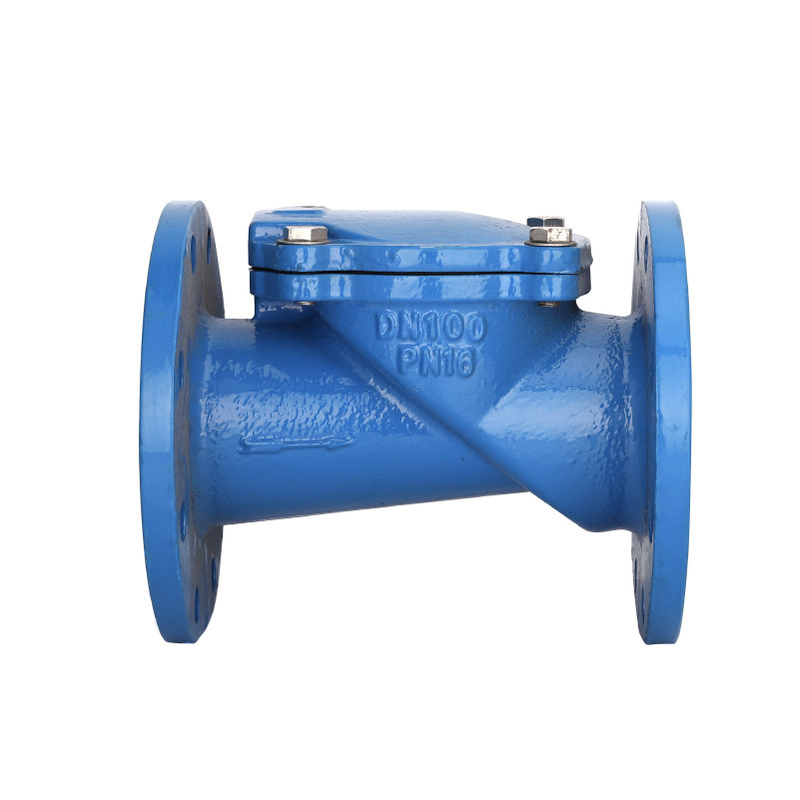

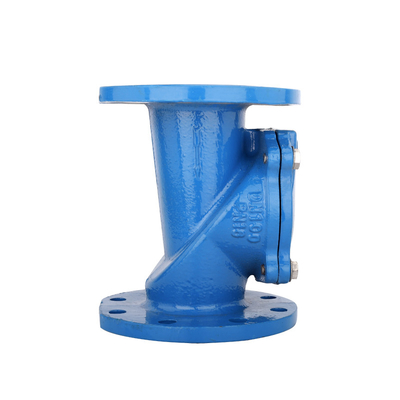

The swing check valve has a unique rubber flap check valve with no impact sound, which has met the more demanding requirements of the site; this rubber flap check valve not only has zero leakage, but also has a 40-degree shape due to the fact that the valve flap is covered with NBR rubber and the device. The inclined angle can greatly reduce the water hammer and water hammer sound.
There are three parts that make up the rubber flap check valve. We can see it from the name of the rubber flap check valve: the valve body, the rubber flap and the valve cover. Therefore, the name of the rubber flap check valve is also derived from this. Come on, it's very easy for us to remember. This kind of rubber flap check valve is very easy to use. Its biggest feature is that it can reduce the loss of the faucet and play the biggest key with a negligible effect.
Rubber flap check valve consists of valve body, valve cover, valve flap and spring, etc. It is mainly used at the outlet of pipelines in water supply and drainage systems, petroleum, chemical and other industrial sectors to prevent backflow of media. Due to the inclined design of the sealing ring of this product, the closing time is short, which can reduce the water hammer pressure. The valve disc is made of nitrile rubber and steel plate by high temperature pressing, which is resistant to erosion and has good sealing performance. The product structure is simple, maintenance, repair and transportation are very convenient.
technical parameter
| Size | DIN3202-F6 | Flange dimension(EN 1092-2) PN10/PN16 | ||
| DN | L | D | K | n-d |
| DN40/1.5 | 180 | 150 | 110 | 4-0)19 |
| DN50/2 | 200 | 165 | 125 | 4-019 |
| DN65/2.5 | 240 | 185 | 145 | 4-0)19 |
| DN80/3 | 260 | 200 | 160 | 8-019 |
| DN100/4 | 300 | 220 | 180 | 8-0)19 |
| DN125/5 | 350 | 250 | 210 | 8-0)19 |
| DN150/6 | 400 | 285 | 240 | 8-(P23 |
| DN200/8 | 500 | 340 | 295/295 | 8-0)23/12-023 |
| DN250/10 | 600 | 405 | 350/355 | 12-0)23/12-0)28 |
| DN300/12 | 700 | 460 | 400/410 | 12-023/12-0)28 |
| DN400/16 | 900 | 580 | 515/525 | 16-028/16-031 |
| DN500/20 | 1100 | 715 | 620/650 | 20-028/20-034 |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
| Q1. Can I have a sample order for valve? | A: Yes, we welcome sample order to test and check quality.Mixed samples are acceptable. |
| Q2. Do you have any MOQ limit for valve order? | A: Low MOQ, 1pc for sample checking is available |
| Q3. How do you ship the goods and how long does it take to arrive? | A: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional. |
| Q4. How to proceed an order for valve? | A: Firstly let us know your requirements or application. Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order.Fourthly We arrange the production. |
| Q5: Are you products standard? | A: Our model is standard, if you have specific demand, pls tell us. |
| Q6: Do you have interest to do our own design items? | A: Absolutely! We have big interest. |
