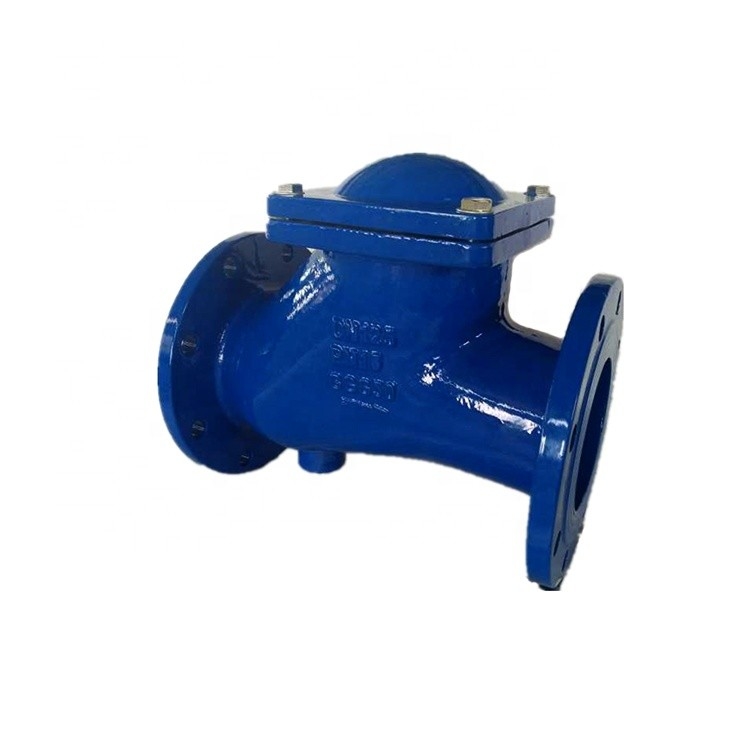

H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve

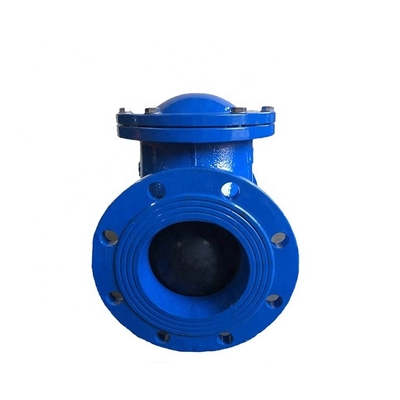

H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve
H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve

Large Image :  H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: muffler Check valve
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve

Description
Application: General, Petrochemical Engineering Product Name:: H44X-16Q Ductile Iron Check Valve
Body Material: Nodular Cast Iron Port Size: DN50-DN600
Pressure: PN10/PN16 Model Number: H44X-16Q
Power: Waterpower Modelling: Feel Comfortable
Highlight:

H44X-16Q Nodular Cast Iron Check Valve

,

Ductile Nodular Cast Iron Check Valve

,

DN50 Rubber Flap Check Valve

Ductile Nodular Cast Iron Float Ball Type Non Return Check Valve

The swing check valve has a unique rubber flap check valve with no impact sound, which has met the more demanding requirements of the site; this rubber flap check valve not only has zero leakage, but also has a 40-degree shape due to the fact that the valve flap is covered with NBR rubber and the device. The inclined angle can greatly reduce the water hammer and water hammer sound.



Product Range:



The valve disc is encapsulated as a whole to ensure the purity of the medium and long service life.

The opening pressure is small, and the low pressure sealing performance is excellent.

Whole watershed design, small head loss.

Low pressure opening and closing performance is good.

A hydraulic buffer cylinder can be installed to increase the slow closing function.

The surface of the valve body is sprayed with powder epoxy resin, which has good anti-corrosion performance.

The valve disc is covered with NBR rubber, which has good corrosion resistance and good sealing performance.

The structure is simple, except for the valve body and valve cover, there is only one movable elastic valve disc inside.

Full flow design, small head loss, not easy to accumulate debris, maintenance

Nominal diameter: DN50~600mm

Nominal pressure: 1.0/1.6MPa

Sealing test: 1.1PN

Shell test: 1.5PN

Working temperature: -10℃~120℃

Flange dimension standard: ISO 7005

Working medium: water, sewage, neutral oil

Valve mechanism length standard: ISO 5752


technical parameter



NO.
PART
MATERIAL
1

Body
GG25/GGG40
2

Ball
Metal+ NBR/EPDM
3

Cap
GG25/GGG40
4

Bolt
Stainless Steel
5

Gasket
NBR/EPDM



DN(mm)
40
50
65
80
100
125
L(mm)
180
200
240
260
300
350
H(mm)
98
106
129
146
194
207
ΦD(mm)
PN10
Φ110
Φ125
Φ145
Φ160



Φ180
Φ210
PN16
Φ110
Φ125
Φ145
Φ160
Φ180
Φ210
DN(mm)
150
200
250
300
350
400
L(mm)
400
500
600
700
800
900
H(mm)
240
322
388
458
610
705
ΦD(mm)
PN10
Φ240
Φ295
Φ350
Φ400
Φ460
Φ515
PN16
Φ240
Φ295
Φ355
Φ410
Φ470
Φ525



H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 0H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 1H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 2
H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 3H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 4
H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 5H44X-16Q Nodular Cast Iron Check Valve Ductile DN50 Rubber Flap Check Valve 6
