DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

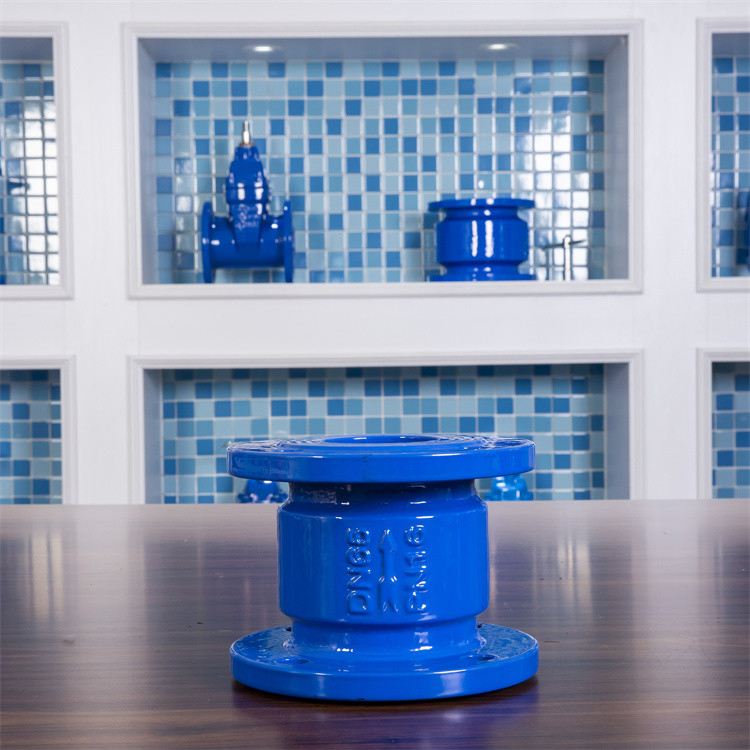

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil
DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil

Large Image :  DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: DN65
Payment & Shipping Terms:
Minimum Order Quantity: 100 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 10000 pcs/ month

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil

Description
Type:: Silencing Check Valve Connection: Flange Ends
Temperature: 0-80℃ Pressure: PN10/16
Material: Ductile Iron QT450-10 Media: Water, Water Gas Oil Etc
Structure: Control Port Size: DN65
Highlight:

DN65 Cast Iron Silent Check Valve

,

GGG50 Cast Iron Silent Check Valve

,

types of check valves for water

GGG50 Ductile Iron Body ISO Silencing Water Type Check Valve Made of Cast Iron DN65 PN10/16



product description

Silencing check valve refers to relying on the flow of the medium itself and automatically open and close valve disc, used to prevent media flow back valve, also known as check valve, one-way valve, muffler check valve counterflow valve, and back pressure valve. Check valve is a kind of automatic valve, its main function is to prevent media backflow, prevent pump and drive motor reverse, as well as the discharge of container medium. Check valves can also be used to supply lines in which pressure may rise to exceed system pressure in the auxiliary system. Check valves can be divided into swing check valves (rotating according to the center of gravity) and lifting check valves (moving along the axis).





Info :

DN 40-800 mm
PN 1.0----1.6 MPa
Suitable temperatur 100 C max
Media Water, gas, oil.



Silencing check valve flange thickness (mm) flange outer circle (mm) waterline height (mm) waterline diameter (mm) Length (mm) Weight (KG)
DN50 16 160 2 102 124 5.5
DN65 15.5 180 2 122 135 6.8
DN80 17 195 2 133 155 8.5
DN100 17.5 215 2 156 170 11.5
DN125 20 245 2 186 196 15.3
DN150 21 280 2 208 210 22
DN200 21 335 2 265 261 31.5




DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 0DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 1

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 2DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 3


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 4

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 5

DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 6





DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 7



DN65 Ductile Cast Iron Silent Check Valve Water GGG50 Water Gas Oil 8





































































































































































































































































































































Q : How long is your delivery time?

A : Generally it is 15-30 days. If the goods are in stock 5 days or if the material is not at stock it requires 10 days above, it is according to quantity.

Q : Do you provide samples ? is it free or extra ?

A : Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q : What is your terms of payment ?

A : Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
