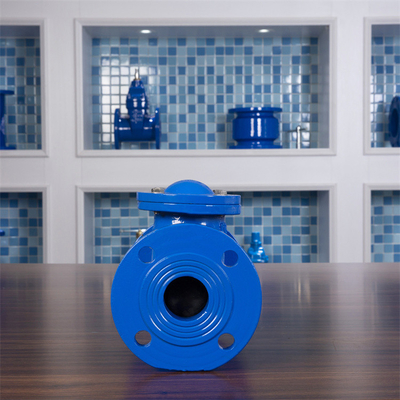

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve
F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve

Large Image :  F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: Ball Check Valve
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve

Description
Type: Flange Ball Check Valve Port Size: 2" - 24"
Material: Casting Iron Pressure: Medium Pressure
Application: Water Treatment Connection: EN1092-2 Flange
Power: Manual Working Pressure: PN10/PN16
Highlight:

F6 Ball Check Valve

,

DN500 ball check valve for sewage

,

PN16 non return check valve

F6 DN50-DN500 Double Flange Non-Return Ball Check Valve PN10/PN16

product description

Ball check valve is a check valve with multi-ball, multi-channel, multi-cone inverted fluid structure, mainly composed of front and rear valve bodies, rubber balls, cone bodies, etc.



Its working principle is: the rubber ball rolls in the dome cover for a short stroke to realize the opening and closing of the valve. When the water pump starts, the water rushes open the rubber ball under the action of pressure, so that the rubber ball rolls to the right, its position is fixed by the cone in the rear valve body, and the check valve opens; after the pump stops, due to the The return water pressure forces the rubber ball to roll to the left front valve body to close the check valve. The rubber ball is made of hollow steel ball, and the rubber with good elasticity can not only ensure the sealing, but also reduce the damage to the pipeline system during the valve closing process. When the valve is opened, the cone-shaped body with holes can fix the steel ball and eliminate the pressure of the contact area between the rubber ball and the cone-shaped body, so that the contact is surface contact, and the hydraulic loss caused by the vibration of the rubber ball in the valve body is reduced.



The rubber ball is made of hollow steel ball, and the rubber with good elasticity can ensure the sealing and reduce the damage to the pipeline system during the valve closing process. The cone with holes fixes the steel ball when the valve is opened and eliminates the pressure on the contact surface between the rubber ball and the cone, making the contact surface contact, reducing the hydraulic loss caused by the vibration of the rubber ball in the valve. In large pipeline systems, the use of three-flow or four-flow spherical check valves can replace the large valve plate structure, reduce the weight of the valve plate, and make the inner flow channel an independent porous structure. The ball is placed in each hole, and the liquid is in In the process of entering the valve body and the outflow process, they go their own way, without interfering with each other, reducing the impact force and vibration during the valve closing process, reducing noise, and completely eliminating the running ball failure. There are no joint parts in the multi-channel ball check valve (the existence of the shaft and the bushing, there is no relative mechanical friction movement, compared with the swing check valve, there is no wearing part, it has a longer service life, and there is no maintenance work.



Technical conditions and materials:


1. The structure length conforms to EN 558-1, basic series 48 (DIN 3202 F6)
2. Flange connection conforms to EN 1092-2
3. Soft seal
4. Full bore
5. Applicable temperature: -20℃~120℃
6. Valve body: cast iron/ductile iron
7. Ball: EPDM package
8. Applicable size: DN50~DN800



Product structure diagram and main dimensions:

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 0



Nominal diameter 50 65 80 100 125 150 200 250 300
L(mm) 250 280 310 350 400 450 550 650 750
H(mm) 180 210 225 245 280 320 380 450 510



F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 1F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 2F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 3



F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 4F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 5


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 6

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 7

F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 8





F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 9



F6 DN500 Ball Check Valve Double Flange PN10 Non Return Check Valve 10
