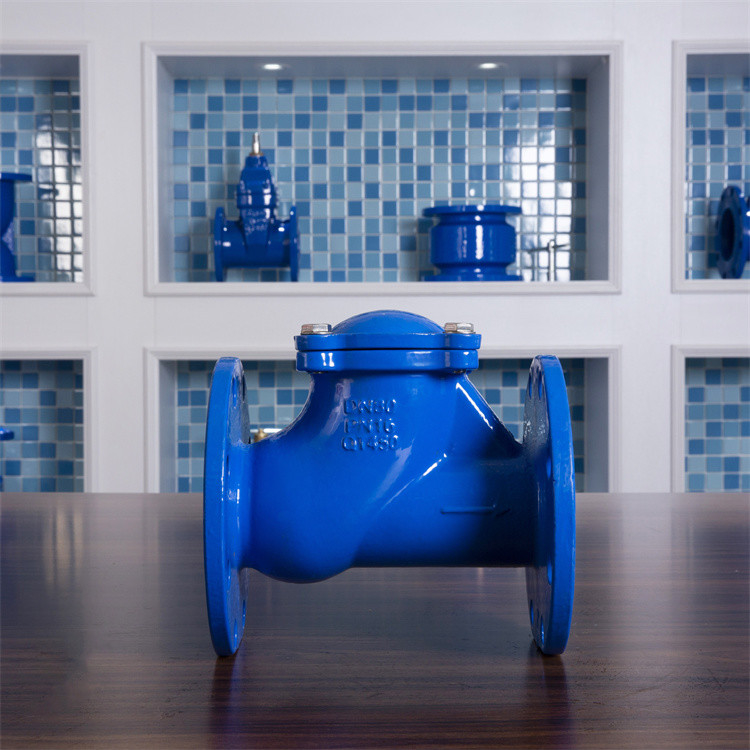

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends
DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends

Large Image :  DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Model Number: Ball Check Valve
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends

Description
Type: Cast Iron Ball Check Valve Port Size: 1/2"-4"
Material: Casting Iron Pressure: Medium Pressure
Temperature Of Media: Medium Temperature Connection: Flange Ends
Model Number: H12X-16Q Working Pressure: PN10/PN16
Highlight:

DN150 flanged ball check valve

,

PN16 Ball Check Valve

,

300mm cast iron check valve

DN150 Flanged End Type Cast Iron Ball Check Valve PN16

product description

A check valve, clack valve, non-return valve or one-way valve is a mechanical device, a valve, which normally allows fluid (liquid or gas) to flow through it in only one direction. Check valves are two-port valves, meaning they have two openings in the body, one for fluid to enter and the other for fluid to leave. There are various types of check valves used in a wide variety of applications. Check valves are often part of common household items. Although they are available in a wide range of sizes and costs, many check valves are very small, simple, and/or cheap. Check valves work automatically and most are not controlled by a person or any external control; accordingly, most do not have any valve handle or stem. The bodies (external shells) of most check valves are made of plastic or metal.



Technical conditions and materials:


1. The structure length conforms to EN 558-1, basic series 48 (DIN 3202 F6)
2. Flange connection conforms to EN 1092-2
3. Soft seal
4. Full bore
5. Applicable temperature: -20℃~120℃
6. Valve body: cast iron/ductile iron
7. Ball: EPDM package
8. Applicable size: DN50~DN800



Main Parts and Material:



Product Name
Material
Valve Body
Cast iron/Ductile iron
Bonnet
Cast iron/Ductile iron
Disc
Cast iron/Ductile iron
Disc Seat Ring
Stainless steel/Brass/Bronze
Body Seat Ring
Stainless steel/Brass/Bronze
Hinge Pin
Stainless steel



Nominal diameter

50-300mm

50-300mm

50-300mm

Nominal pressure

1.0mpa

1.6mpa

2.5mpa

Shell test

1.5mpa

2.4mpa

3.75mpa

Sealing test

1.1mpa

1.76mpa

2.75mpa

Air seal test

0.6mpa

0.6mpa

0.6mpa

Applicable temperature

≤100℃

≤100℃

≤100℃

Applicable medium

water

water

water



DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 0DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 1DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 2

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 3DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 5

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 6

DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 7





DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 8



DN150 Flanged Ball Check Valve PN16 300mm Cast Iron Check Valve Flange Ends 9





























































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
