Product Details:
|
| Type: | Thread Check Valve | Port Size: | DN40~DN1200 |
|---|---|---|---|
| Material: | Ductile Iron | Media: | Sewage,oil,drinking Water |
| Temperature Of Media: | Medium Temperature | Medium: | Water Oil Gas |
| Model Number: | H12X-16Q | Working Pressure: | PN10/PN16 |
| Highlight: | PN16 Water Ball Check Valve,DN80 Ductile Iron Ball Check Valve,dn100 pn16 check valve |
||

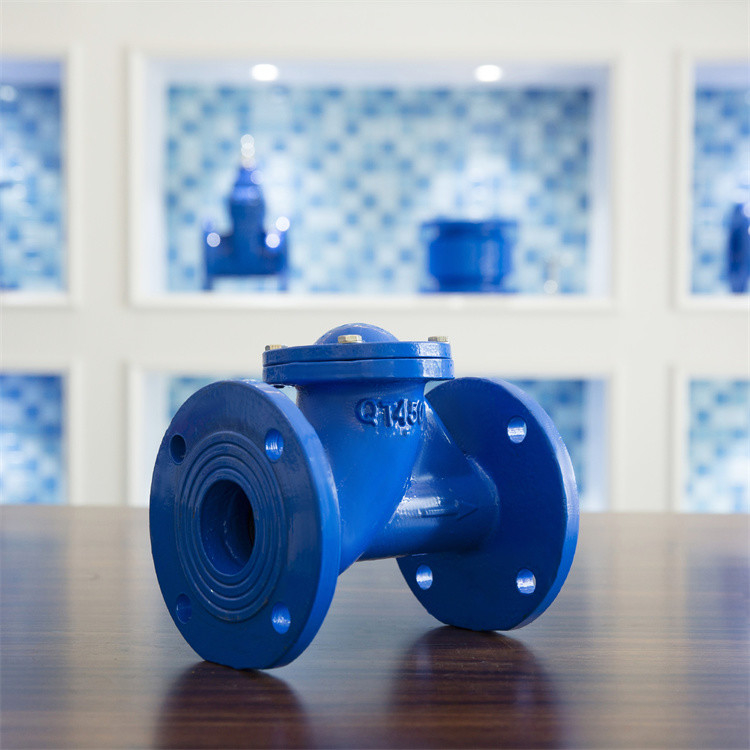

HQ41X slide the ball type check valve, the use of rubber covering rolling ball for disc, under the action of medium, can be made on the body of the integral sliding scroll up and down, to open or close the valve, the sealing performance is good, do not produce water hammer.
Details of HQ41X slide ball check valve
HQ41X slide the ball type check valve, the use of rubber covering rolling ball for disc, under the action of medium, can be made on the body of the integral sliding scroll up and down, to open or close the valve, the sealing performance is good, silencing the city shut down, do not produce water hammer. Body adopts the whole flow passage, large flow, small resistance, the head loss is 50% less than swing, in a horizontal or vertical installation, can be used to the cold water, hot water, industrial and living sewage pipe network, and is more suitable for diving sewage pump, medium temperature 0-80 ℃. It can be installed at the outlet of the pump to prevent the backflow and water hammer from damaging the pump.
Structure and purpose
The valve is composed of valve body, ball and baffle. Rubber covering ball is used for disc, which can be in the valve body under the action of medium
The whole slide is made up and down
Scroll left and right to open or close the valve, silencing off, not producing water hammer, good sealing performance, loss of water head, and level Or vertical installation.
Main Parts and Material:
| NO. | Part | Material |
| 1 | Body | Cast iron GG25 or Ductile ironGGG40 |
| 2 | Ball | Aluminium+NBR or EPDM |
| 3 | Cover | Ductile iron GGG40 |
| 4 | Bolt | SS316 |
| 5 | Nut | SS304 |
| 6 | O-Ring | NBR/EPDM |
| 7 | O-Ring | NBR/EPDM |
|
Nominal diameter |
50-300mm |
50-300mm |
50-300mm |
|
Nominal pressure |
1.0mpa |
1.6mpa |
2.5mpa |
|
Shell test |
1.5mpa |
2.4mpa |
3.75mpa |
|
Sealing test |
1.1mpa |
1.76mpa |
2.75mpa |
|
Air seal test |
0.6mpa |
0.6mpa |
0.6mpa |
|
Applicable temperature |
≤100℃ |
≤100℃ |
≤100℃ |
|
Applicable medium |
water |
water |
water |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and factory, and not a trading company.
Q: Do you have an agent or representative abroad?
A: We don't have an agent abroad,
please contact us to purchase valves from Fengbao Valve Co., Ltd directly.
Q: What's your product range?
A: We can produce a Gate valve, Check valve, Y strainer,
by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: Is there any stock in your factory? and how about your lead time?
A: We stock valves with normal sizes.
The lead time depends on your quantity, generally 30-40 days.
Q: Which countries do you export to?
A: We export directly to the vast majority of countries in the world.
