Product Details:
|
Type:: | Metal Check Valves | Material:: | Ductile Iron |
---|---|---|---|
Port Size:: | DN40~DN1200 | Media:: | Sewage,oil,drinking Water |
Screen:: | SS Wire Screen/SS Perforated Mesh | Medium: | Water Oil Gas |
Model Number: | H12X-16Q | Working Pressure: | PN10/PN16 |
Highlight: | DIN F6 ball float check valve,GGG50 ball float check valve,DN80 ball type check valve |

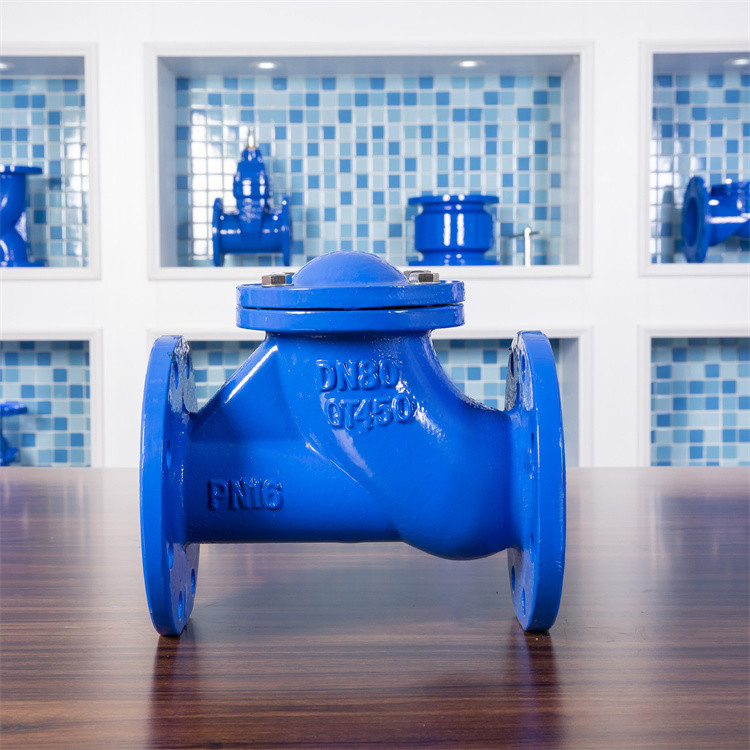

The ball check valve uses a rubber-covered rolling ball as the valve disc. Under the action of the medium, it can roll up and down on the integral slideway in the valve body to open or close the valve. It has good sealing performance and is closed by noise reduction without water hammer. . The valve body adopts a full water flow channel, with large flow and low resistance, and the head loss is 50% smaller than that of the swing type. It can be installed horizontally or vertically. It can be used for cold water, hot water, industrial and domestic sewage pipe networks, and is more suitable for submersible sewage pumps. The medium temperature is 0~80℃.
The ball check valve adopts rubber rolling ball as the valve disc. Under the action of the medium, it can roll up and down on the integral slideway of the valve body to open or close the valve. It has good sealing performance and is closed by noise reduction without water hammer. . The valve body of the slide ball check adopts a full water flow channel, with large flow and low resistance, and can be installed horizontally or vertically.
Main Parts and Material:
NO. | Part | Material |
1 | Body | Cast iron GG25 or Ductile ironGGG40 |
2 | Ball | Aluminium+NBR or EPDM |
3 | Cover | Ductile iron GGG40 |
4 | Bolt | SS316 |
5 | Nut | SS304 |
6 | O-Ring | NBR/EPDM |
7 | O-Ring | NBR/EPDM |
Nominal diameter |
50-300mm |
50-300mm |
50-300mm |
Nominal pressure |
1.0mpa |
1.6mpa |
2.5mpa |
Shell test |
1.5mpa |
2.4mpa |
3.75mpa |
Sealing test |
1.1mpa |
1.76mpa |
2.75mpa |
Air seal test |
0.6mpa |
0.6mpa |
0.6mpa |
Applicable temperature |
≤100℃ |
≤100℃ |
≤100℃ |
Applicable medium |
water |
water |
water |
Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.
The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.
The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!
