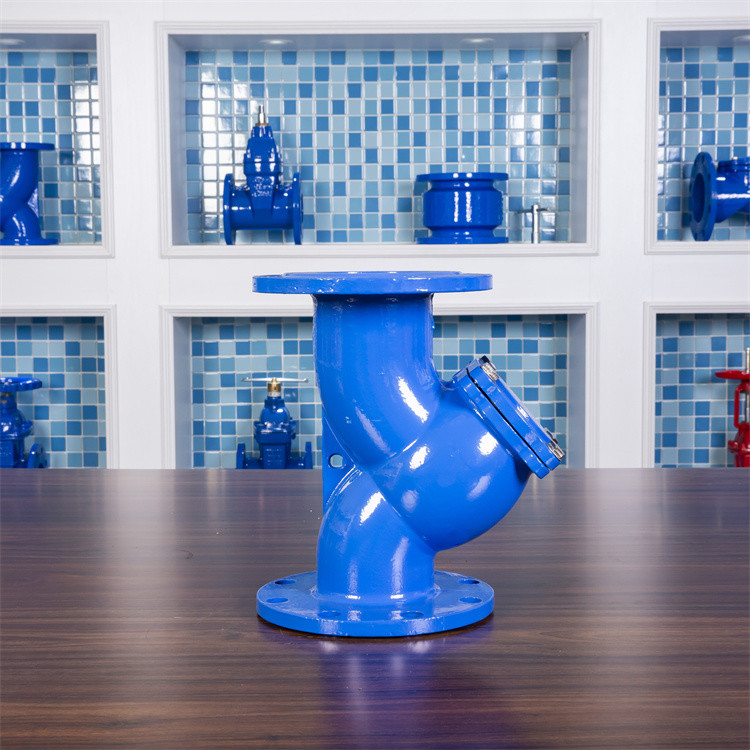

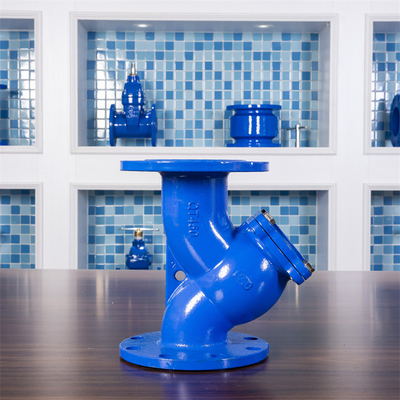

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400

Certification
China Fengbao Valve Manufacturing Co., Ltd. certification
China Fengbao Valve Manufacturing Co., Ltd. certification
I'm Online Chat Now

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400
Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400

Large Image :  Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400

Description
Type:: Ductile Iron Y Strainer Port Size:: DN50-DN400
Material:: QT400 Media:: Sewage,oil,drinking Water
Flange Connection:: EN1092-2 PN10/16, ANSI B16.5 Working Temperature: In:: Medium Temperature
Highlight:

Industrial Ductile Iron Y Strainer

,

PN10 PN16 Ductile Iron Y Strainer

,

DN400 y strainers for water

PN10 PN16 Industrial Cast Iron Water Meter Y Type Filter Y Strainer



product description

A nodular cast iron Y-type filter is used to filter and intercept debris in pipeline transportation. It can be used with other valve sleeves. The y-type filters can also be used alone in cold and hot circulating water systems, compressed air, steam, oil and other media. pipeline. The intercepted debris is stored in the filter cartridge of the Y-type filter and needs to be cleaned regularly and irregularly. The filter can be used repeatedly, and the filter material is stainless steel.
The problem of unwanted material flowing in pipes is a nuisance, and often there are some that can cause trouble. Dust, foreign objects, or other agglomerates of the product itself can even clog or damage pumps, nozzles, condensers, and similar equipment. Sometimes a finished product is shut down due to the presence of undesirable solids.





y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307







y-type filter(reduced diameter) flange thickness flange outer circle structure length waterline height waterline diameter Height screen diameter filter length filter aperture center distance of filter weight length
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 0Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 1Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 2

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 3Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 5

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 6

Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 7





Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 8



Industrial Ductile Iron Y Strainer PN10 PN16 Water Meter Sewage DN400 9





























































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
