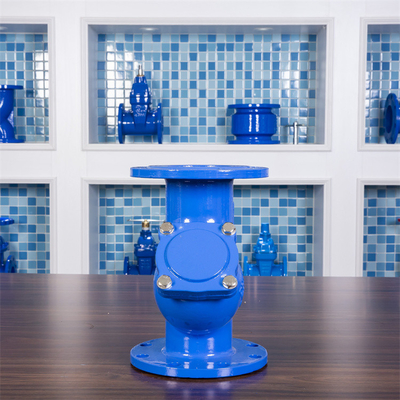

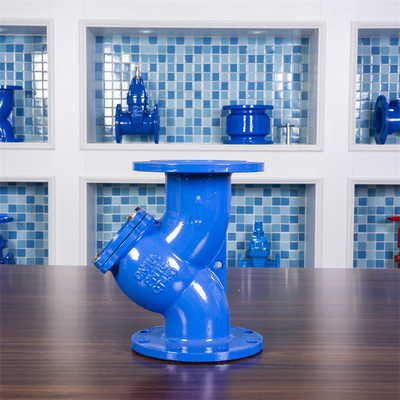

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves
DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves

Large Image :  DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves

Product Details:
Place of Origin: CHINA
Brand Name: FB valve
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 50 Pieces
Price: Negotiable
Packaging Details: plywood box
Delivery Time: 7-25 work day
Payment Terms: T/T
Supply Ability: 100 tons/ month

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves

Description
Type:: Ductile Iron Y Strainer Port Size:: DN100
Material:: QT450 Media:: Ewage,oil,drinking Water
Flange Connection:: EN1092-2 PN10/16, ANSI B16.5 Place Of Origin:: Cangzhou, China
Highlight:

DN100 flange end y type strainer

,

QT450 flange end y type strainer

,

Stainless Steel Mesh y strainer valves

Stainless Steel Mesh Y-Type Filter Ductile Iron QT450 Precision Filter DN100



product description



Application of Y-Strainer

The industries in which y strainers are best used are those in need of continuous protection against debris. The most popular use for y strainers is in steam applications. Owing to its design, the Y-Type strainer has no difficulties handling the high pressure applied to steam.

Y strainers are also used for liquid applications. Sand and gravel are two very common forms of debris that pose a significant challenge to liquid applications. When combined with applications for water handling, y strainers are used to secure devices that may otherwise be affected or clogged by different unwanted particles.

Y-Strainer is considered as the standard for steam systems and is commonly used for these systems, but it can be used for other fluids also. Its lightweight, cylindrical shape is very effective and can withstand high pressures. Y-Strainers that withstand pressures up to 6000 psi are widely used. And in these situations, the design of the strainer is important so that it can handle these high pressures without failing. The temperature is another element to be noticed under such high pressure. Standard carbon steel is not ideal for steam pressures of 1500 psi or higher, since the steam temperature is 1000°F or higher. In such instances, the Y-Strainer body is typically made of chrome-moly alloy.

Y-Strainers are also used in applications including air and natural gas in addition to steam. Again, high pressures are normal. However, high air pressure does not always mean high temperatures, and ordinary carbon steel bodies with adequate wall thickness can be used.





y-type filter(full bore) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter
DN50 17 160 125 1.5 100 185 48 85 2 4
DN65 17 180 145 1.5 118 210 60 95 2 4
DN80 17 190 160 2 132 242 68 116 2 4
DN100 17 215 180 2 154 265 82 137 2 4
DN125   240 210 2 172
DN150   280 240 2 217   113 165 3 5
DN200 20 335 295 2 262
DN250 24     2.5 307







y-type filter(reduced diameter) flange thickness flange outer circle structure lenght waterline height waterline diameter Height screen diameter filter lenght filter aperture center distance of filter weight lenght
DN50 12.5 156 201 2 102 185 48 85 2 4 4.5 205
DN65 12 175 217 2 123 210 60 95 2 4 6.5 220
DN80 14 190 247 2 134 242 68 116 2 4 8 250
DN100 14.5 209 293.5 2 157 265 82 137 2 4 10.5 298
DN125 20 240                 14 315
DN150 24 280 335       113 165 2 5 19 350
DN200 24 335 405               34 410
DN250 24 405 460               58 525
DN300 24 460 520               80 605
DN350 25 520 580               98 627
DN400 27 580                 126 630



DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 0DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 1DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 2

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 3DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 4


company  profile



Fengbao valve factory is an entity factory with professional production experience and professional manufacturing technology. The company adheres to the business philosophy of "customer-oriented, quality-oriented, attentive service", integrates all kinds of professional advantage resources, and creates cost- effective products. The company has an excellent R & D team, dedicated to creating trustworthy products. Seek new development and create new brand.



The core team has gathered professionals with experience in product R & D, production and operation. The company attaches great importance to the growth of its employees while growing up, and has long been committed to the cohesion and improvement of their sense of responsibility, technical level and professional knowledge. The company provides development opportunities and platforms for every excellent employee, provides standardized system training and promotion mechanism, and helps employees to improve and grow in their own work field.



The company's products are mainly featured by appropriate price, excellent quality and high cost performance. Company independent research and development, production, unique production, to achieve the first-class quality, and favored by the majority of customers!

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 5

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 6

DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 7





DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 8



DN100 Flange End Y Type Strainer QT450 Stainless Steel Mesh Y Strainer Valves 9





























































































































































































































































































































Q: Are you a manufacturer or trading company?

A: We are a valve manufacturer and factory, and not a trading company.

Q: Do you have an agent or representative abroad?

A: We don't have an agent abroad,

please contact us to purchase valves from Fengbao Valve Co., Ltd directly.

Q: What's your product range?

A: We can produce a Gate valve, Check valve, Y strainer,

by ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.

Q: Is there any stock in your factory? and how about your lead time?

A: We stock valves with normal sizes.

The lead time depends on your quantity, generally 30-40 days.

 Q: Which countries do you export to?

A: We export directly to the vast majority of countries in the world.
